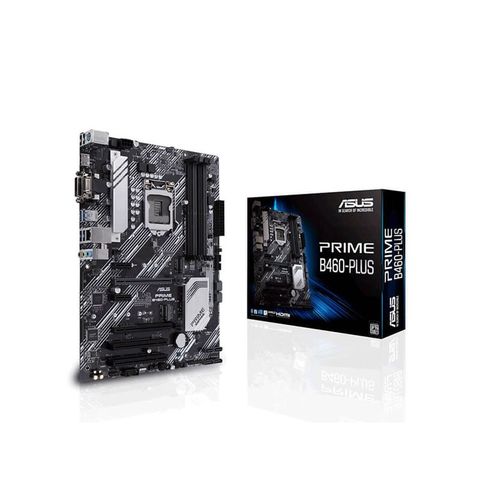

ASUS PRIME B460-PLUS

Chuyên cung cấp ASUS PRIME B460-PLUS nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

ASUS PRIME B460-PLUS

Intel® B460 (LGA 1200) ATX motherboard with RGB headers, dual M.2, DDR4 2933MHz, HDMI, D-sub, DVI, USB 3.2 Gen 1 ports, Intel® Optane memory ready, SATA 6 Gbps.

THÔNG SỐ KỸ THUẬT

CPU:

• Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

CHIPSET: Intel® B460

MEMORY

• 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non- ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• OptiMem

HỖ TRỢ MULTI-GPU

• Hỗ trợ Công nghệ AMD CrossFireX 2 Chiều

GRAPHIC

Integrated Graphics Processor

• 1 x D- Sub
• 1 x HDMI 1.4b
• 1 x DVI-D

EXPANSION SLOTS

Intel® 10th Gen Processors

• 1 x PCIe 3.0/2.0 x16 (x16 mode)

Intel® B460 Chipset

• 1 x PCIe 3.0/2.0 x16 (x4 mode)
• 2 x PCIe 3.0/2.0 x1

2 x PCI

STORAGE

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® B460 Chipset :

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 5, 10
• Intel® Rapid Storage Technology supports
• Intel® Optane™ Memory Ready

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

AUDIO

Realtek ALC887 7.1-Channel High Definition Audio CODEC

• Supports : Jack-detection, up to 24-Bit/192kHz playback

Audio Feature :

• LED-illuminated design
• Audio Shielding
• Dedicated audio PCB layers
• Premium Japanese audio capacitors

USB PORTS

Rear USB Port ( Total 6 )

• 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
• 2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )

• 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
• 4 x USB 2.0 port(s)

SOFTWARE FEATURES

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

- EZ update

AI Charger

ASUS Turbo LAN

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

 ASUS SPECIAL FEATURES

ASUS 5X PROTECTION III

- ASUS DIGI+ VRM

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS Safeslot core

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-Slot

ASUS Lighting Control

- Standard RGB headers

BACK I/O PORTS

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0
• 3 x Audio jack(s)

INTERNAL I/O PORTS

• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (3 x 4 -pin)
• 1 x AAFP connector
• 2 x Lighting Control RGB Strip Header(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x System panel(s) (Chassis intrusion header is inbuilt)
• 1 x Clear CMOS jumper(s)
• 1 x COM port header

PHỤ KIỆN

• User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x Supporting DVD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

MANAGEABILITY

WOL by PME, PXE

HỆ ĐIỀU HÀNH: Windows® 10 64-bit

FORM FACTOR

Dạng thiết kế Mini ITX

12 inch x 9.0 inch ( 30.5 cm x 22.86 cm )
