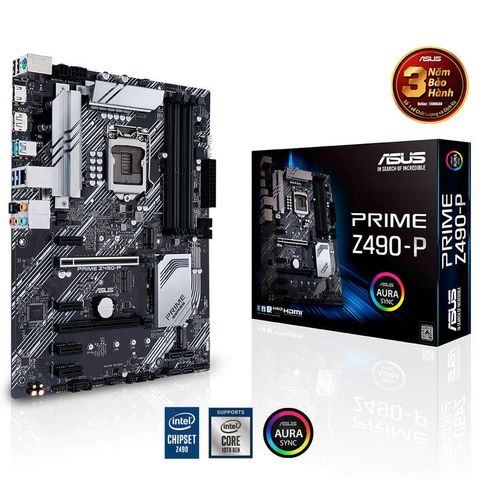

ASUS PRIME Z490 P

Chuyên cung cấp ASUS PRIME Z490 P nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

ASUS PRIME Z490 P

ASUS SPECIAL FEATURES

ASUS PRIME Z490 P

INTERNAL I/O PORTS

THÔNG SỐ KỸ THUẬT

CPU:

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

CHIPSET: Intel® Z490

MEMORY

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

GRAPHIC

Integrated Graphics Processor

1 x DisplayPort 1.4 **

1 x HDMI 1.4b

MULTI-GPU SUPPORT

Supports AMD 2-Way CrossFireX Technology

EXPANSION SLOTS

Intel® 10th Gen Processors

1 x PCIe 3.0 x16 (x16 mode) *1

Intel® Z490 Chipset

1 x PCIe 3.0 x16 (x4 mode)

4 x PCIe 3.0 x1

STORAGE

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Z490 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready

LAN

Realtek® RTL8111H

WIRELESS DATA NETWORK

M.2 slot only (Key E) (Support CNVI & PCIe interface)

AUDIO

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- Optical S/PDIF out port(s) at back panel

- LED-illuminated design

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

USB PORTS

Rear USB Port ( Total 6 )

2 x USB 3.2 Gen 2 port(s)(2 x Type-A)

2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 8 )

4 x USB 3.2 Gen 1 port(s)

4 x USB 2.0 port(s)

SOFTWARE FEATURES

ASUS Exclusive Software

Armoury Crate

- Aura Sync

AI Suite 3

- Performance And Power Saving Utility

EPU

Digi+ VRM

Fan Xpert 4

- EZ update

AI Charger

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS SPECIAL FEATURES

ASUS 5X PROTECTION III

- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

ASUS EZ DIY

- Procool

AURA Sync

- Standard RGB headers

- Addressable Gen 2 RGB header

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 2 Type-A

2 x USB 3.2 Gen 1 Type-A

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

INTERNAL I/O PORTS

1 x CPU Fan connector(s)

3 x Chassis Fan connector(s)

2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 with E key for Wi-Fi module

1 x SPI TPM header

4 x SATA 6Gb/s connector(s)

1 x AIO_PUMP connector

1 x Thunderbolt header(s)

1 x 4-pin EATX 12 V Power connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

ACCESSORIES

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x M.2 SSD screw package(s)

1 xM.2 Key E screw package(s)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

MANAGEABILITY

WOL by PME, PXE

OPERATING SYSTEM

Windows® 10 64-bit

FORM FACTOR

ATX Form Factor

12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
