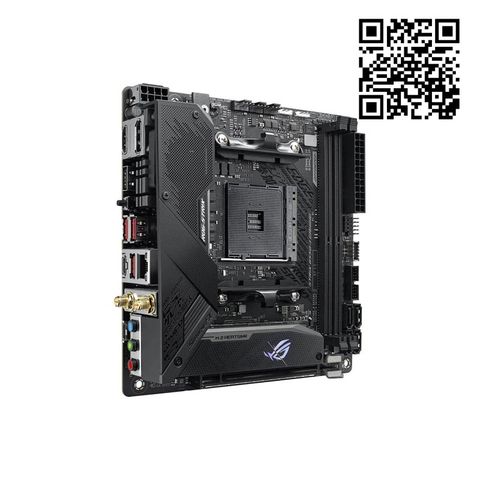

ASUS ROG STRIX B550-I GAMING

Chuyên cung cấp ASUS ROG STRIX B550-I GAMING nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

ASUS ROG STRIX B550 I GAMING

ASUS ROG STRIX B550-I GAMING

ASUS ROG STRIX B550-I GAMING

THÔNG SỐ KỸ THUẬT

CPU

AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors

Chipset: AMD B550

BỘ NHỚ:

3rd Gen AMD Ryzen™ Processors

2 x DIMM, Max. 64GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

OptiMem II

ECC Memory (ECC mode) support varies by CPU.

ĐỒ HỌA:

1 x HDMI 2.1(4K@60HZ) *

1 x DisplayPort 1.4 *

*Graphics specifications may vary between CPU types.

LAN: Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard

WIRELESS DATA NETWORK

Intel® Wi-Fi 6 AX200

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Supports dual band frequency 2.4/5 GHz

Supports channel bandwidth: HT20/HT40/HT80/HT160

BLUETOOTH: Bluetooth v5.1

AUDIO

SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A

- Dual OP Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/192kHz playback *

Audio Feature :

- Rear audio USB Type-C® port

- LED-illuminated design

- Audio Shielding

- Premium Japanese audio capacitors

KHE MỞ RỘNG

3rd Gen AMD Ryzen™ Processors

1 x PCIe 4.0 x16 (x16 mode)

LƯU TRỮ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

3rd Gen AMD Ryzen™ Processors :

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

AMD B550 Chipset :

1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

CỔNG USB

Rear USB Port ( Total 6 )

4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C® +3 x Type-A)

1 x USB 2.0 port(s)

1 x USB 2.0 port(s)(1 x audio USB Type-C® )

Front USB Port ( Total 5 )

1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)

2 x USB 3.2 Gen 1 port(s)

2 x USB 2.0 port(s)

TÍNH NĂNG PHẦN MỀM

ROG Exclusive Software

- RAMCache III

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- Anti-virus software

ASUS Exclusive Software Features

Armoury Crate

- Aura Creator

- Aura Sync

-AI Noise Cancelling Microphone

AI Suite 3:

- 5-way Optimization

TPU

EPU

DIGI+ VRM

Fan Xpert 4

Turbo APP

- EZ update

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

TÍNH NĂNG ĐẶC BIỆT CỦA ASUS

Aura Sync

- Standard RGB header(s)

- Addressable Gen 2 RGB header(s)

ASUS Q-Design

- ASUS Q-CODE

- ASUS Q-DIMM

- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

ASUS EZ DIY

-BIOS Flashback™ button

-BIOS FlashBack™ LED

-Clear CMOS header

-Procool

-Pre-mounted I/O shield

- SafeSlot

Rear audio USB Type-C® connector

CỔNG I/O PHÍA SAU:

1 x Intel® I225-V 2.5Gb Ethernet

1 x DisplayPort

1 x HDMI

4 x USB 3.2 Gen 2 (1 x USB Type-C®+3 x Type-A)

2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™ 1 for audio USB Type-C®)

1 x BIOS FlashBack™ Button(s)

1 x ASUS Wi-Fi Module

3 x LED-illuminated audio jacks

CỔNG I/O NỘI BỘ:

1 x CPU Fan connector(s)

1 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x Aura RGB Strip Header(s)

1 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen 1 front panel TypeC™ connector

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)

4 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Thermal sensor connector(s)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x Speaker connector

1 x VRM_HS_FAN Header

PHỤ KIỆN:

User's manual

I/O Shield

4 x SATA 6Gb/s cable(s)

2 x M.2 Screw Package

1 x Supporting DVD

1 x ROG Strix stickers

1 x M.2 bracket

1 x Cable ties pack(s)

1 x Wi-Fi Antenna(s)

1 x Extension cable for Addressable LED

1 x Panel cable

1 x ROG Thank you card

1 x ROG audio USB Type-C® cable

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

MANAGEABILITY: WOL by PME, PXE

HỆ ĐIỀU HÀNH: Support for Windows 10 64-bit

KÍCH THƯỚC:

Mini ITX Form Factor

6.7 inch x 6.7 inch ( 17 cm x 17 cm )
