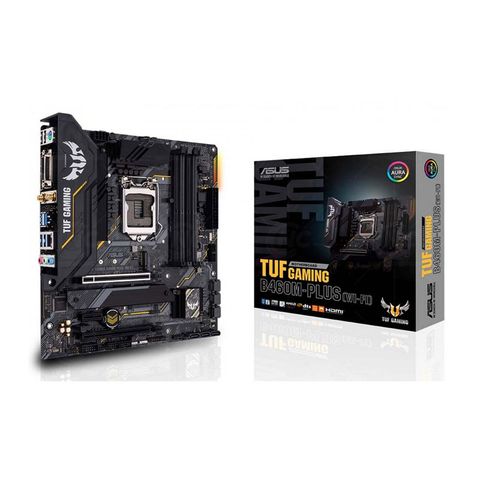

ASUS TUF GAMING B460M-PLUS (WIFI)

Chuyên cung cấp ASUS TUF GAMING B460M-PLUS (WIFI) nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

ASUS TUF GAMING B460M-PLUS (WIFI)

Intel® B460 (LGA 1200) micro ATX gaming motherboard with dual M.2, 8 power stages, Intel® WiFi 6, HDMI, DisplayPort, SATA 6Gbps, USB 3.2 Gen 1 port, and Aura Sync RGB Lighting.

THÔNG SỐ KỸ THUẬT

CPU:

• Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

CHIPSET: Intel® B460

MEMORY

• 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non- ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• OptiMem

HỖ TRỢ MULTI-GPU

• Hỗ trợ Công nghệ AMD CrossFireX 2 Chiều

GRAPHIC

Integrated Graphics Processor

• 1 x DisplayPort 1.4
• 1 x HDMI 1.4b
• 1 x DVI-D

EXPANSION SLOTS

Intel® 10th Gen Processors

• 1 x PCIe 3.0 x16 (x16 mode)

Intel® B460 Chipset

• 1 x PCIe 3.0 x16 (chế độ x4)
• 1 x PCIe 3.0 x1

STORAGE

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® B460 Chipset :

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 5, 10
• Intel® Rapid Storage Technology supports
• Intel® Optane™ Memory Ready

LAN

Intel® I219-V 1Gb Ethernet

ASUS LANGuard

WIRELESS DATA NETWORK

• Intel® Wi-Fi 6 AX200
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
• Supports up to 2.4Gbps max data rate
• Supports dual band frequency 2.4/5 GHz
• Supports channel bandwidth: HT20/HT40/HT80/HT160
• Supports PCIe interface

BLUETOOTH

• Bluetooth v5.1

AUDIO

Realtek ALC S1200A 8-Channel High Definition Audio CODEC

• Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

• Exclusive DTS Custom for GAMING Headsets.
• Audio cover
• Audio Shielding
• Dedicated audio PCB layers
• Premium Japanese audio capacitors

 USB PORTS

Rear USB Port ( Total 6 )

• 4 x USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )

• 2 x USB 3.2 Gen 1 port(s)
• 4 x USB 2.0 port(s

SOFTWARE FEATURES

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

- EZ update

AI Charger

ASUS Turbo LAN

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

 ASUS SPECIAL FEATURES

ASUS TUF PROTECTION

- ASUS DIGI+ VRM

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- TUF LANGuard

- ASUS Overvoltage Protection

- SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

- Aluminum heatsink design

AURA Sync

- Standard RGB header(s)

- Addressable Gen 2 RGB header(s)

 BACK I/O PORTS

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0
• 3 x Audio jack(s)
• 1 x ASUS Wi-Fi Module

 INTERNAL I/O PORTS

• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 2 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Chassis intrusion header is inbuilt)
• 1 x Clear CMOS jumper(s)
• 1 x COM port header

PHỤ KIỆN

• User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x Supporting DVD
• 1 x TUF Gaming Sticker
• 1 x TUF Certification card(s)
• 1 x Wi-Fi moving antenna
• 1 x M.2 SSD screw package(s)
• 1 x M.2 Rubber Package(s)

 BIOS

128 Mb Flash ROM, UEFI AMI BIOS

MANAGEABILITY

WOL by PME, PXE

HỆ ĐIỀU HÀNH: Windows® 10 64-bit

FORM FACTOR

Dạng thiết kế Mini ITX

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
