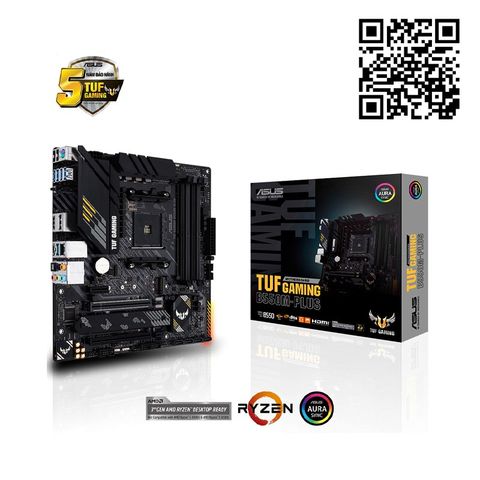

ASUS TUF GAMING B550M-PLUS

Chuyên cung cấp ASUS TUF GAMING B550M-PLUS nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

ASUS TUF GAMING B550M PLUS

TUF GAMING B550M-PLUS

TUF GAMING B550M-PLUS

TUF GAMING B550M-PLUS

THÔNG SỐ KỸ THUẬT

CPU: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors

Chipset: AMD B550

Bộ nhớ:

3rd Gen AMD Ryzen™ Processors

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

Next Generation AMD Ryzen PRO Processors

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

Đồ họa:

1 x DisplayPort 1.2

1 x HDMI 2.1(4K@60HZ)

Multi-GPU Support:

Supports AMD 2-Way CrossFireX Technology

Khe cắm mở rộng:

3rd Gen AMD Ryzen™ Processors

1 x PCIe 3.0 x16 (x16 mode)

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode)

1 x PCIe 3.0 x1

Lưu trữ: Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

3rd Gen AMD Ryzen™ Processors :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset :

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*

4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

LAN:

Intel® I225-V 2.5Gb Ethernet

TUF LANGuard

Âm thanh:

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- Exclusive DTS Custom for GAMING Headsets.

- Optical S/PDIF out port(s) at back panel

- Audio cover

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

Cổng USB

Rear USB Port ( Total 8 )

2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)

4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )

2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

4 x USB 2.0 port(s)(4 x Type-A)

Tính năng phần mềm

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- AI Noise Cancelling Microphone

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

- EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Tính năng đặc biệt của ASUS

ASUS TUF PROTECTION

- ASUS DIGI+ VRM (Digital power design with Dr. MOS)

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- TUF LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Procool

AURA Sync

- Standard RGB headers

- Addressable Gen 2 RGB header

Cổng I/O phía sau

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (2.5G) port(s)

2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)

4 x USB 3.2 Gen 1 (blue) Type-A

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x BIOS FlashBack™ Button(s)

Cổng I/O nội bộ

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x SPI TPM header

4 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

1 x Speaker connector

Phụ kiện:

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x TUF Gaming Sticker

1 x TUF Certification card(s)

1 x M.2 SSD screw package(s)

1 x M.2 Rubber Package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Khả năng quản lý: WOL by PXE

Hệ điều hành: Windows® 10 64-bit

Kích thước bo mạch chủ:

ATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
