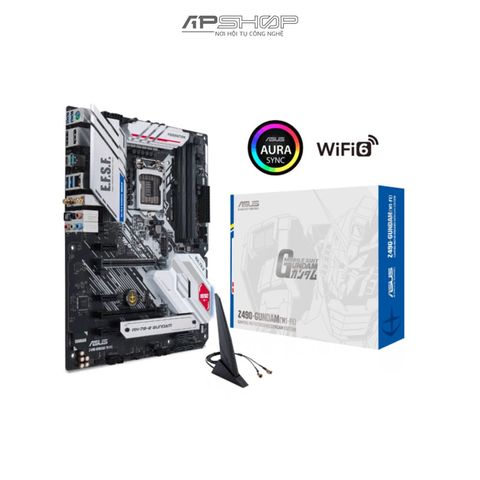

ASUS Z490 GUMDAM EDITION - WIFI
THÔNG SỐ KỸ THUẬT
- CPU
- Build in Intel® Socket 1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Chipset: Build in Intel® Z490
- Bộ nhớ:
- 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
- Đồ họa:
- Integrated Graphics Processor
- 1 x DisplayPort 1.4
- 1 x HDMI 1.4b
- Hỗ trợ Multi-GPU: Supports AMD 2-Way CrossFireX Technology
- Khe mở rộng:
- Intel® 10th Gen Processors
- 1 x PCIe 3.0 x16 (x16 mode)
- Intel® Z490 Chipset
- 1 x PCIe 3.0 x16 (x4 mode)
- 3 x PCIe x1
- Lưu trữ:
- Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
- Intel® Z490 Chipset :
- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
- 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
- 6 x SATA 6Gb/s port(s)
- Support Raid 0, 1, 5, 10
- Intel® Rapid Storage Technology supports
- Intel® Optane™ Memory Ready
- LAN
- Intel® I219-V 1Gb Ethernet
- TUF LANGuard
- Wireless Data Network
- Intel® Wi-Fi 6 AX201
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
- Supports up to 2.4Gbps max data rate
- Supports dual band frequency 2.4/5 GHz
- Supports channel bandwidth: HT20/HT40/HT80/HT160
- Supports CNVI interface
- Bluetooth: Bluetooth v5.1
- Audio
- Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- Audio Feature :
- - Optical S/PDIF out port(s) at back panel
- - Audio cover
- - Audio Shielding
- - Dedicated audio PCB layers
- - Premium Japanese audio capacitors
- USB Ports
- Rear USB Port ( Total 6 )
- 2 x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C®)
- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
- Front USB Port ( Total 6 )
- 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
- 1 x USB 3.2 Gen 1 port(s)(2 x Type-A)
- 1 x USB 2.0 port(s)(2 x Type-A)
- 1 x USB 2.0 port(s)(1 x Type-A)
- Software Features
- ASUS Exclusive Software
- Armoury Crate
- AI Suite 3:
- - Performance And Power Saving Utility
- Turbo V Evo
- EPU
- Digi+ VRM
- Fan Xpert 4
- System information
- AI Charger
- ASUS Turbo LAN
- DTS Custom for GAMING Headsets
- Norton Anti-virus software (Free Trial for 90 days)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
- ASUS Special Features
- ASUS TUF PROTECTION
- - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- - ASUS Enhanced DRAM Overcurrent Protection
- - ASUS ESD Guards
- - TUF LANGuard
- - ASUS Overvoltage Protection
- - ASUS SafeSlot
- - ASUS Stainless-Steel Back I/O
- ASUS Q-Design
- - ASUS Q-DIMM
- - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - ASUS Q-Slot
- ASUS Thermal Solution
- ASUS EZ DIY
- AURA Sync
- - Standard RGB headers
- - Addressable Gen 2 RGB header
- Back I/O Ports
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
- 4 x USB 3.2 Gen 1 (blue) Type-A
- 1 x Optical S/PDIF out
- 5 x Audio jack(s)
- 1 x ASUS Wi-Fi Module
- Internal I/O Ports
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 3 x Chassis Fan connector(s)
- 1 x AIO_PUMP connector
- 2 x Aura RGB Strip Headers
- 1 x Addressable Gen 2 header(s)
- 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
- 2 x M.2 Socket 3
- 6 x SATA 6Gb/s connector(s)
- 1 x Thunderbolt header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s) (Chassis intrusion header is inbuilt)
- 1 x Clear CMOS jumper(s)
- 1 x COM port header
- 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
- Accessories
- User´s manual
- 1 x ASUS Fan Holder
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x Supporting DVD
- 1 x DIY Sticker for GUNDAM Cobranding Series
- 1 x Wi-Fi moving antenna
- BIOS
- 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Manageability
- Operating System
- Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
