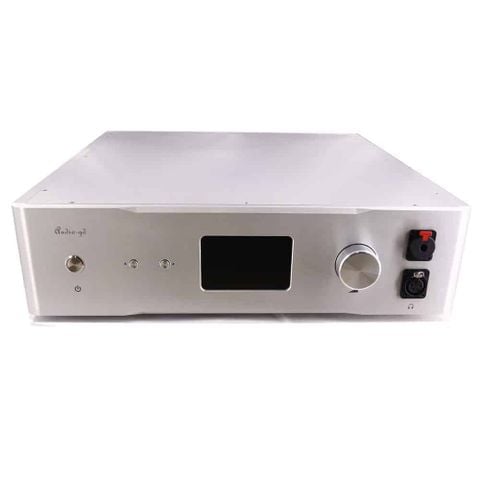

Audio GD HE9 MK3

Audio GD HE9 MK3

23,166,000₫
Giá trọn bộ linh kiện hãng đã gồm công HD thay Gọi mua ngay 0283844 2008

Có chổ đậu ô tô (Có thể mất phí)

    Cửa hàng bạn đã chọn

    Còn hàng sẵn có xem ngay lấy liền

    Trung tâm bảo hành Audio GD






    Thông số kỹ thuật

    SPECIFICATIONS
    Product typeHeadphone amplifier / Preamplifier
    SNR> 130dB
    THD< 0.0025%
    THD+N< 0.0025%
    Frequency response (XLR)20Hz – 100kHz (< 4dB)
    Max output levelXLR : 19V
    RCA : 9.5V
    ACSS : 6MA
    Input impedanceXLR : 94KΩ
    ACSS : < 5Ω
    Output impedancePreamp XLR : 10Ω
    Balanced headphone output : 2Ω
    Balanced headphone output power15W @ 25Ω
    10W @ 40Ω
    4W @ 100Ω
    1350mW @ 300Ω
    Single-ended headphone output power4W @ 25Ω
    2500mW @ 40Ω
    1000mW @ 100Ω
    350mW @ 300Ω
    Crosstalk< -130dB
    Transformer power260W (3 transformers)
    GainHigh gain : +20dB
    Low gain : +10dB
    Volume control100 steps
    Exponential curve
    GENERAL
    Consumption66W (Class A)
    Weight20kg
    Housing materialAluminum
    ColorSilver or Black
    Dimensions430 x 485 x 123mm
    DisplayMultilevel LED
    Package1x Audio-GD HE-9 MK3
    1x Power cable
    1x Metal Remote

    HIGH PRECISION VOLUME CONTROL

    Volume control consist of relay-controlled attenuators. Fully-independent, fully-balanced stereo volume controls. The volume controls feature consist of high-precision 0.05% tolerance film resistors and golden contact relays. Buffered inputs and outputs.There 4 channels volume boards are built in the unit to achieve ultimate balanced volume control. They are controlled by a digital signal controlling the high quality relays switching the precision resistors in analog area.





    Quality of volume control is very important in balanced applications . It have to effectuate the four channels to work as synchronous as possible to keep the balanced signal in perfect shape. In traditional volume controls the balanced output will introduce distortion which will negatively influence sound quality and performance and might even get worse than a single ended setup and waste the advantages of balanced designed solution.REGENERATIVE POWER SUPPLYAn integrated regenerative power supply is a proprietary electric generator built into the unit to avoid any noise from main power and deliver ultra-low noise and clean AC wave to feed the preampIt will regenerate the main power and block noise from the power line, this way the preamp is able to reproduce the most neutral and analog sound you can imagine.First a transformer converts main voltage. DC conversion is done by class A PSUs power supplies.A discrete balanced regenerative wave generator produces the new ultra-low noise wave form at 400Hz. The 400Hz frequency was chosen because they have better efficiency compared to traditional 50Hz and at this frequency, 400Hz, it will boost the sound to reproduce real and pleasant analog sound.The balanced gain amps with powerful output stages are driving the regenerative transformers to produce the extreme clean AC power. The extreme regenerated clean AC power is send to separate class A PSUs power supplies for both left and right channel.The discrete class-A DC power supply with high input impedance will avoid any noise and allow the amplifier stages to have low output impedance at very high speed and linear at frequency spectrum.

    REGENERATIVE POWER SUPPLY

    An integrated regenerative power supply is a proprietary electric generator built into the unit to avoid any noise from main power and deliver ultra-low noise and clean AC wave to feed the preamp

    It will regenerate the main power and block noise from the power line, this way the preamp is able to reproduce the most neutral and analog sound you can imagine.

    First a transformer converts main voltage. DC conversion is done by class A PSUs power supplies.

    A discrete balanced regenerative wave generator produces the new ultra-low noise wave form at 400Hz. The 400Hz frequency was chosen because they have better efficiency compared to traditional 50Hz and at this frequency, 400Hz, it will boost the sound to reproduce real and pleasant analog sound.

    The balanced gain amps with powerful output stages are driving the regenerative transformers to produce the extreme clean AC power. The extreme regenerated clean AC power is send to separate class A PSUs power supplies for both left and right channel.

    The discrete class-A DC power supply with high input impedance will avoid any noise and allow the amplifier stages to have low output impedance at very high speed and linear at frequency spectrum

    REGENERATIVE POWER SUPPLY

    An integrated regenerative power supply is a proprietary electric generator built into the unit to avoid any noise from main power and deliver ultra-low noise and clean AC wave to feed the pre-ampIifier will regenerate the main power and block noise from the power line, this way the preamp is able to reproduce the most neutral and analog sound you can imagine.First a transformer converts main voltage. DC conversion is done by class A PSUs power supplies.A discrete balanced regenerative wave generator produces the new ultra-low noise wave form at 400Hz. The 400Hz frequency was chosen because they have better efficiency compared to traditional 50Hz and at this frequency, 400Hz, it will boost the sound to reproduce real and pleasant analog sound.

    The balanced gain amps with powerful output stages are driving the regenerative transformers to produce the extreme clean AC power. The extreme regenerated clean AC power is send to separate class A PSUs power supplies for both left and right channel.The discrete class-A DC power supply with high input impedance will avoid any noise and allow the amplifier stages to have low output impedance at very high speed and linear at frequency spectrum.
