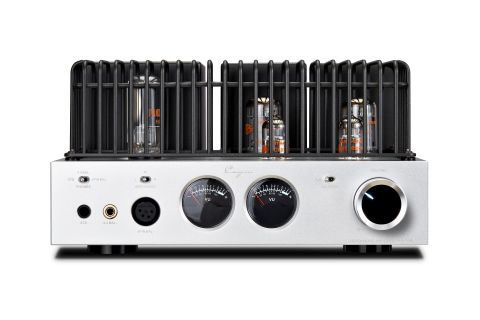

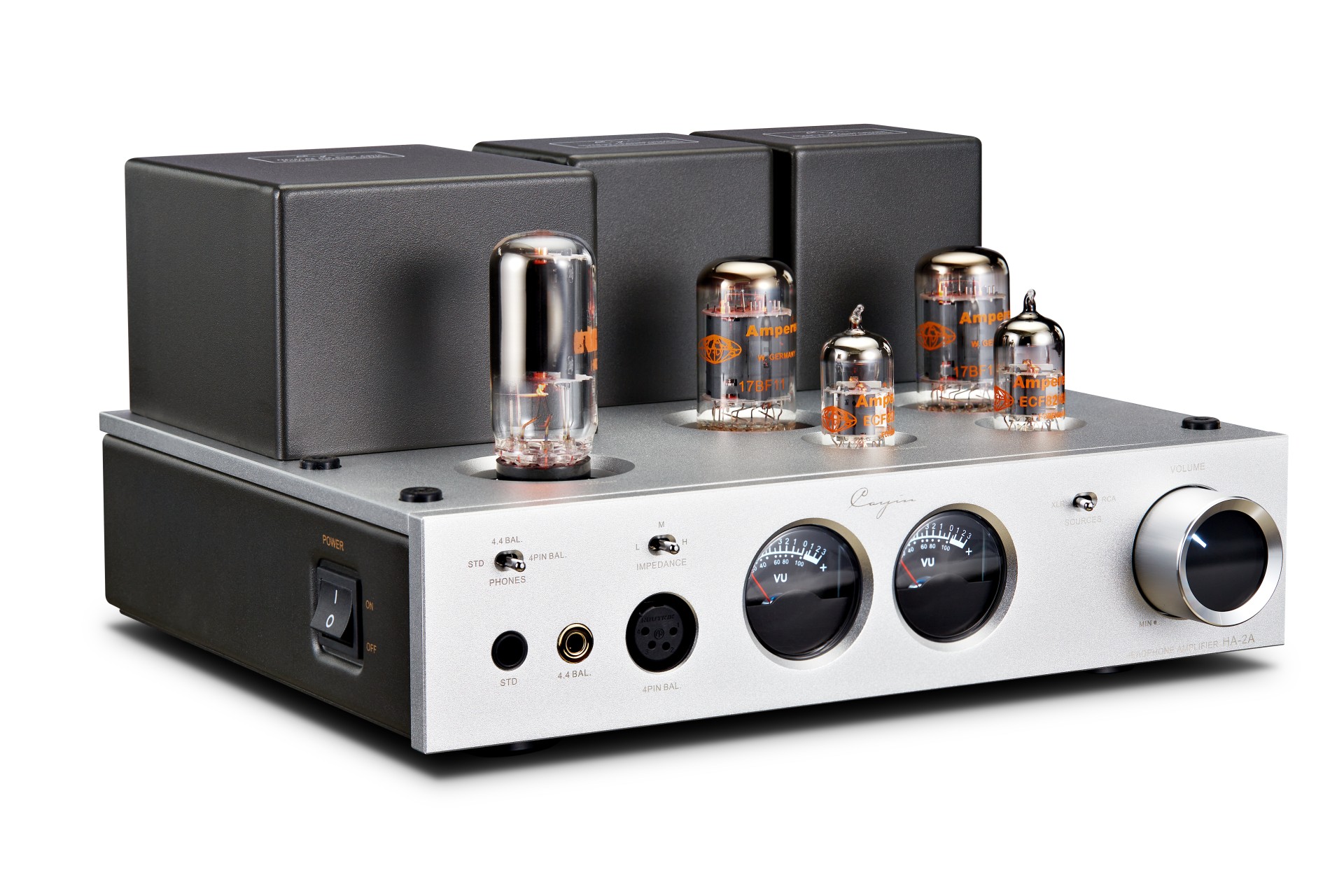

Bộ Ampli Đèn Cayin HA 2A

Thông số kỹ thuật:

Amplifier

Input Connector: XLR x2, RCA x2

Vac:

Output: Amperex 17BF11 x2

Driver:  Amperex ECF82/6U8 Rectifier

Rectifier: RCA 17AX4GT

Dimension: 270mm x 215mm x 143mm

Weight: 10kg

N220v-240V

Fuse:

~220v-120v: T500mAL250v

~100v-120v: T1AL250v

Output Tube Fuse: Tl 25mAE250V

Power Consumption: 60w

Working Condition: Temp:-20C-70C; Humidity: 20%-80%

Storage Condition: Temp:-20C-70C; Humidity: 20%-90%

Headphone output

Rated Output*

4pin XLR (BAL): 800mW (L); 900mW (M); 1000mW (H)

4.4mm (BAL): 200mW (L); 300mW (M); 270mW (H)

6.35mm (SE): 330mW (L); 550mW (M); 750mW (H)

Frequency Range: 20Hz~50kHz ±3dB

TH+D: 0.2% (1 kHz, 100mW)

Sensitivity: 450mV~600mV

S/N Ratio: 100dB (A-Weighted)

Headphone Impedance: L: 8-64Ω; M: 65-250Ω; H: 251-600Ω

Headphone Connectors: 4pin XLR x 1, 4.4mm x 1, 6.35mm xl

* Output per channel

Vacuum Tube Substitution

Vacuum Tube: Substitution

Amperex 17BF11: 17BF11A

Amperex ECF82/6U8: ECF82, 61-JG

RCA 17AX4GT: 17AX4GTA
