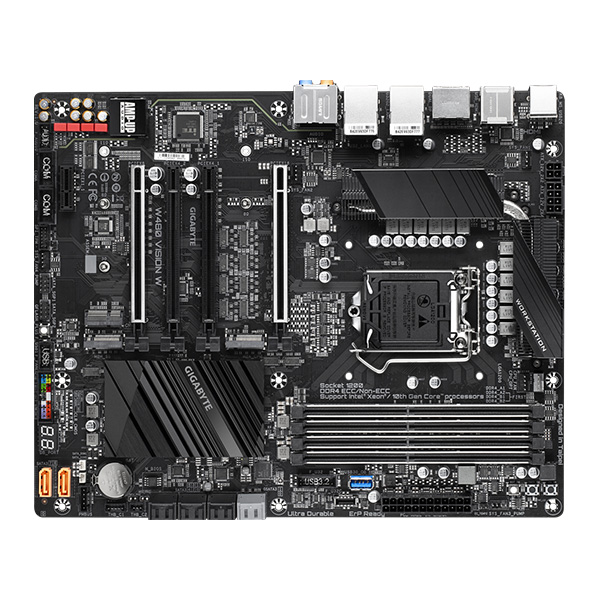

Bo Mạch Chủ Gigabyte W480 Vision W (w480, Socket 1200, Atx)

• LGA1200 package:
  Intel^® Xeon^® W series processors
  10th Generation Intel^® Core™ processors/Intel^® Pentium^® processors/ Intel^® Celeron^® processors
• L3 cache varies with CPU

1. Intel^® W480 Express Chipset

1. Intel^® Xeon^® W-1290/W-1270 series processors/Intel^® Core™ i9/i7 processors:
   Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
2. Intel^® Xeon^® W-1250 series processors/Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
   Support for DDR4 2666/2400/2133 MHz
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
   * To support ECC, you must install an Intel^® Xeon^® processor.
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.
2. 2 x DisplayPorts, supporting a maximum resolution of 4096×2304@60 Hz
   * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 512 MB

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
   * The PCIEX4_2 slot shares bandwidth with the M2M_SB connector. The PCIEX4_2 slot becomes unavailable when a device is installed in the M2M_SB connector.
4. 1 x PCI Express x1 slot
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)
5. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)

Supports up to ASPM L1.2 power management protocols.

1. 1 x M.2 connector (Socket 3, M key, type 2280/22110 PCIe x4/x2 SSD support) (M2A_CPU)
2. 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
3. 8 x SATA 6Gb/s connectors (SATA3 0~7)
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
5. Intel^® Optane™ Memory Ready
6. ASMedia^® ASM1061 chip:
   2 x SATA 6Gb/s connectors (GSATA3 0~1), supporting AHCI mode only

M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

1. Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN2)
2. Intel^® GbE LAN chip (1 Gbit/100 Mbit)(LAN1)

• Realtek^® ALC1220-VB codec
  * The back panel line out jack supports DSD audio.
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

• 1 x PS/2 keyboard/mouse port
• 1 x HDMI port
• 2 x DisplayPorts
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 2 x RJ-45 ports
• 1 x optical S/PDIF Out connector
• 5 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x PMBUS (Power Information Detection) header
5. 2 x M.2 Socket 3 connectors
6. 10 x SATA 6Gb/s connectors
7. 2 x SATA DOM power connectors
8. 2 x SATA detection headers
9. 1 x CPU fan header
10. 1 x water cooling CPU fan header
11. 2 x system fan headers
12. 2 x system fan/water cooling pump headers
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB 3.2 Gen 1 port (USB30_OB)
16. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
17. 1 x USB 3.2 Gen 1 header
18. 1 x USB 2.0/1.1 header
19. 2 x Thunderbolt™ add-in card connectors
20. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
21. 2 x serial port headers
22. 2 x temperature sensor headers
23. 1 x power button
24. 1 x reset button
25. 1 x Clear CMOS button
26. 1 x Clear CMOS jumper
27. 1 x Q-Flash Plus button

1. ATX Form Factor; 30.5cm x 24.4cm
