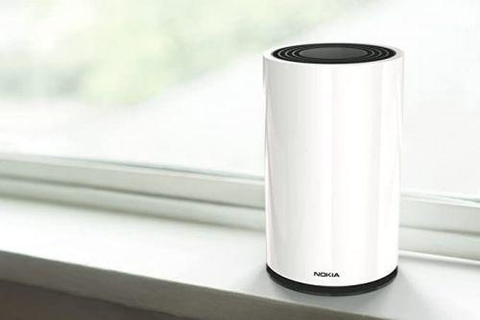

Bộ phát Wifi Nokia FastMile 4G/5G 5G-24W-A

Model

5G-24W-A

Radio – Wi-Fi

Dual-band concurrent IEEE
802.11b/g/n 3x3 2.4 GHz and
802.11ac 4x4 5 GHz
Mesh topology with Nokia WiFi Beacons
Seamless roaming (IEEE 802.11k, 802.11v)

Radio – Cellular

3GPP, release December 15 – 5G Non-Standalone (NSA) option 3x
3x 5G NR interface band n78 TD 3500 MHz (3300 MHz – 3800 MHz)
Dual connectivity (EN-DC)
– 1 LTE + DC 5G (1+n78, 3+n78, 7+n78, 20+n78, 28+n78, 38+n78, 41+n78)
– 2 LTE + DC 5G (1+3+n78, 1+7+n78, 3+7+n78)
– 3 LTE + DC 5G (1+3+7+n78)
Downlink (DL) 4x4 multiple input, multiple output (MIMO) and 256 QAM
Uplink (UL) 1x1 single input, single output (SISO) and 64 QAM
Supported carrier bandwidths:
– 5G: 20 MHz, 40 MHz, 50 MHz, 60 MHz, 80 MHz, 90 MHz, 100 MHz
– 4G/LTE: 5 MHz, 10 MHz, 15 MHz, 20 MHz
Supported 4G/LTE bands
– FDD: B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B28 (700 MHz), B20 (800 MHz)*
– TDD: B40 (2300 MHz), B38 (2600 MHz), TDD B41 (2500 MHz)*
Extensive carrier aggregation between supported bands

Main functions

5G high gain antenna, automated antenna alignment, gain in n78: 11 dBi maximum
Multiband omni antenna for LTE
Integrated residential gateway
Central point of mesh network with Nokia WiFi Beacons

Security

Adheres to strict Nokia security standards
Wi-Fi Protected Access (WPA) support, including WPA Pre-Shared Key (PSK) and WPA2

Management

Multicolor LEDs for status view
Web user interface (WUI) for local configurations
TR-69 auto-configuration server (ACS) access for remote device management

Power Requirements

12 V DC
Consumption: 41 W maximum DC power
supply

Connectivity Interfaces

Wi-Fi (802.11b/g/n, 802.11ac)
3 RJ-45 GigE LAN ports
1 RJ-45 GigE WAN port
USB 3.0 Type A port
SIM slot (size: 4FF/nano)

Physical

Height: 240 mm (9.4 in)
Width: 140 mm (5.5 in)
Weight: 2.2 kg (4.9 lb)

Operating Environment

Temperature: 0 C to 45°C
(32 F to 113 F)
