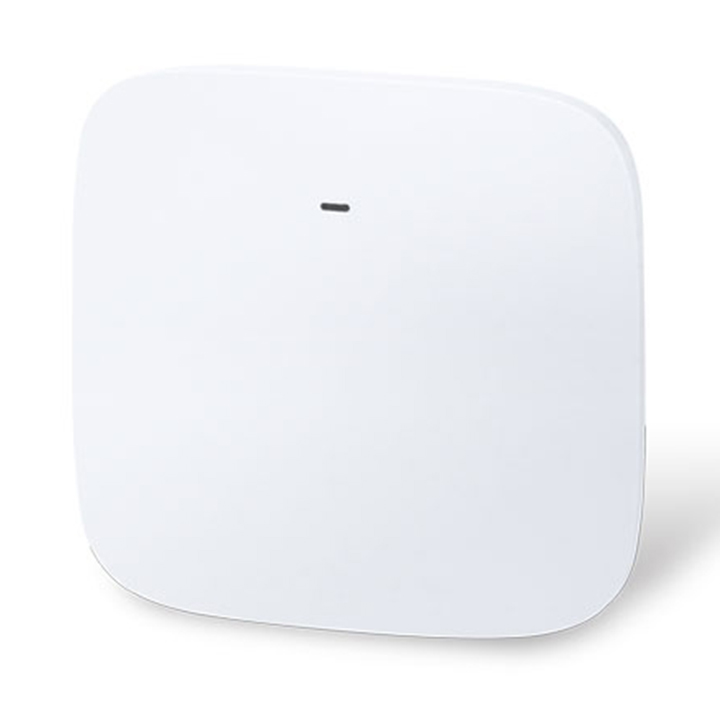

Bộ phát Wi-Fi Dual Band AC1200 2 Port 1G RJ45 PLANET WDAP-C7210E

Hardware Specifications WDAP-C7210E

Interfaces

LAN

2 x 10/100/1000BASE-T RJ45 port

Auto-negotiation and auto MDI/MDI-X

Antennas

Gain: 4 x Internal 5dBi antenna (2.4G x2, 5G x2)

Reset Button

Reset button on the rear side (Press over 15 seconds to reset the device to factory default)

LED Indicators

SYS, 2.4G, 5G

Dimensions (W x D x H)

186 x 186 x 35.8 mm

Weight

380 ± 5g

Power Requirements

48V DC IN, 0.5A, IEEE 802.3at PoE+ or

12V DC IN, 1.5A from DC Jack ( 5.5 x 2.1mm )

Power Consumption

< 12W

Mounting

Ceiling Mount

Wireless Interface Specifications

Standard

IEEE 802.11ac

IEEE 802.11n

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11i

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3x flow control

IEEE 802.11k, 802.11v, and 802.11r

Media Access Control

CSMA/CA

Data Modulation

802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)

802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)

802.11b: DSSS (DBPSK / DQPSK / CCK)

Band Mode

2.4G / 5G concurrent mode

Frequency Range

2.4GHz:

FCC: 2.412~2.462GHz

ETSI: 2.412~2.472GHz

5GHz:

FCC: 5.180~5.240GHz, 5.745~5.825GHz

ETSI: 5.180~5.700GHz

Operating Channels

FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 Channels)

ETSI: 36, 40, 44, 48, 100, 104, 108, 112, 116, 132, 136, 140 (12 Channels)

5GHz channel list may vary in different countries according to their regulations.

Max. Transmit Power (dBm)

FCC: up to 22 ± 1dBm

ETSI: < 20dBm (EIRP)

Receive Sensitivity

Software Features

LAN

Static IP / Dynamic IP

Supports IP-MAC binding

WAN

Static IP

Dynamic IP

PPPoE

Wireless Mode

Access Point

Gateway

WISP

Repeater

Super WDS

Channel Width

20MHz, 40MHz, 80MHz

Encryption Security

64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X

Wireless Security

Enable/Disable SSID Broadcast

Wireless max. 32 MAC addresses filtering

User Isolation

Max. SSIDs

8 (4 per radio)

Max. Clients

64 per radio (50 is suggested, depending on usage)

Max. WDS Peers

4

Wireless QoS

Supports Wi-Fi Multimedia (WMM)

Wireless Advanced

Auto Channel Selection

5-level Transmit Power Control (Max.100%, Efficient 75%, Enhanced 50%, Standard 25% or Min. 12.5%)

Client Limit Control, Coverage Threshold

Wi-Fi channel analysis chart

Fast Roaming

Status Monitoring

Device status, Wireless client List

PLANET Smart Discovery

DHCP client table

System Log supports remote syslog server

VLAN

IEEE 802.1Q VLAN (VID: 3~4094)

SSID-to-VLAN mapping up to 4 SSIDs

Self-healing

Supports auto reboot settings per day/hour

Management

Remote management through PLANET DDNS/ Easy DDNS

Configuration backup and restore

Supports UPnP

Supports IGMP Proxy

Supports PPTP/L2TP/IPSec VPN Pass-through

SNMP v1/v2c/v3 support, MIB I/II, Private MIB

Central Management*

Applicable controllers: NMS-500, NMS-1000V

*Remarks: The feature will be supported through firmware/system upgrade.

Environment & Certification

Temperature

Operating: 0 ~ 40 degrees C

Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing)

Storage: 5 ~ 90% (non-condensing)

Regulatory

CE, RoHS
