ECW120 Mang lại tốc độ và dung lượngngười dùng cao hơn và hiệu suất tăng áp nhanh hơn 11ac Wave 1 APs

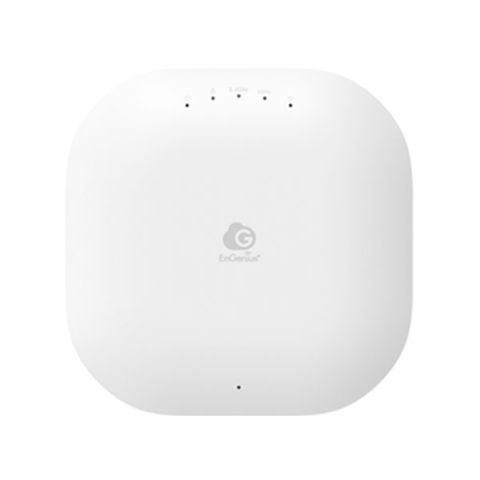

Bộ phát wifi trong nhà EnGenius Cloud Managed ECW120 Beamforming WiFi 802.11ac Wave 2 mang lại tốc độ 1,3 Gbps và dung lượng người dùng cao hơn. Nó tăng tốc hiệu suất nhanh hơn tới 30% so với các AP 11ac Wave 1 cũ. AP băng tần kép này với MU-MIMO và Beamforming có tính năng chia lưới, hỗ trợ PoE và cải thiện độ tin cậy của kết nối cho Wi-Fi cấp doanh nghiệp.
Phải được cấp nguồn qua Ethernet, không bao gồm Bộ adapter
Product | ECW120 |
Technical Specifications | |
Standards | – IEEE 802.11b/g/n on 2.4 GHz |
– IEEE 802.11a/n/ac Wave 2 on 5 GHz | |
Processor | Qualcomm® 717 MHz Quad-Core CPU ARM Cortex A7 |
Antenna | – 2 x 2.4 GHz: 5 dBi |
– 2 x 5 GHz: 5 dBi | |
– Integrated Omni-Directional Antenna | |
Physical Interface | – 1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port |
– 1 x DC Jack | |
– 1 x Reset Button | |
LED Indicators | – 1 x Power |
– 1 x LAN | |
– 1 x 2.4 GHz | |
– 1 x 5 GHz | |
– 1 x MESH | |
Power Source | – Power-over-Ethernet: 802.3af Input |
– IEEE 802.11e Compliant Source | |
– 12VDC /1A | |
Maximum Power Consumption | 12 W |
Surge Protection | 0.5KV |
Wireless & Radio Specifications | |
Operating Frequency | Dual-Radio Concurrent 2.4 GHz & 5 GHz |
Operation Modes | AP, Mesh |
Frequency Radio | – 2.4 GHz: 2400 MHz ~ 2482 MHz |
– 5 GHz: | |
5150 MHz ~ 5250 MHz | |
5250 MHz ~ 5350 MHz | |
5470 MHz ~ 5725 MHz | |
5725 MHz ~ 5850 MHz | |
Transmit Power | – Up to 23 dBm on 2.4 GHz |
– Up to 23 dBm on 5 GHz | |
Tx Beamforming (TxBF) | ✔ |
Radio Chains/Spatial Stream | 2×2:2 |
SU-MIMO | Two (2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio |
MU-MIMO | Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) 1×1 wireless devices simultaneously |
Two (2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio | |
Supported Data Rates (Mbps): | – 2.4 GHz: Max 400 |
– 5 GHz: Max 867 | |
Management | |
Multiple BSSID | 8 SSIDs for both 2.4GHz and 5GHz radios. |
VLAN Tagging | – Supports 802.1q SSID-to-VLAN Tagging |
– Cross-Band VLAN Pass-Through | |
– Management VLAN | |
Spanning Tree | Supports 802.1d Spanning Tree Protocol |
QoS (Quality of Service) | Compliant with IEEE 802.11e Standard |
WMM | |
SNMP | v1, v2c, v3 |
MIB | I/II, Private MIB |
Wireless Security | – WEP Encryption 64/128/152 bit |
– WPA/WPA2 Enterprise (WPA-EAP Using TKIP or AES) | |
– Hide SSID in Beacons | |
– MAC Address Filtering, Up to 32 MACs per SSID | |
– Wireless STA (Client) Connected List | |
– SSH Tunnel | |
– Client Isolation | |
Environmental & Physical | |
Temperature Range | – Operating: 32ºF~104ºF (0ºC~40ºC) |
– Storage: -40ºF~176 ºF (-40ºC~80ºC) | |
Humidity (non-condensing) | – Operating: 90% or less |
– Storage: 90% or less | |
Device Dimensions & Weights | |
ECW120 Device | – Weight: 0.80 lbs. (362.8 g) |
– Diameter: 6.36″ (161.5 mm) | |
– Height: 1.64″ (41.5 mm) | |
Packaging | – Weight: 1.42 lbs. (644.1 g) |
– LxWxH: 12″ x 9″ x 3″ (304.8 mm) x (228.6 mm) x (76.2 mm) | |
Certifications | CE, FCC, IC |
