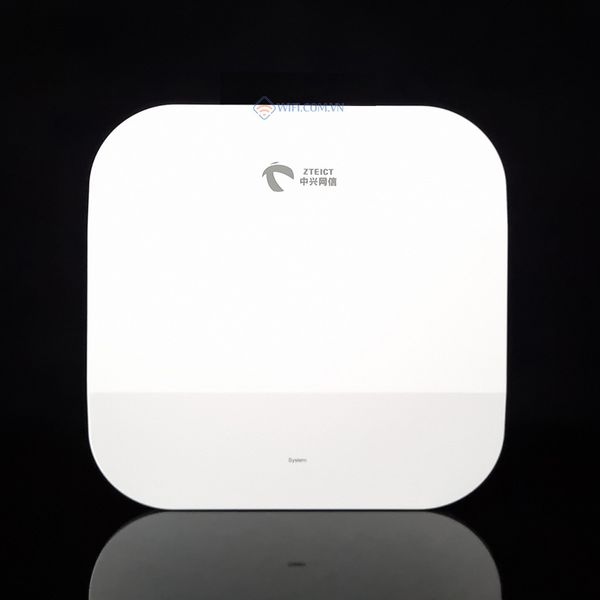

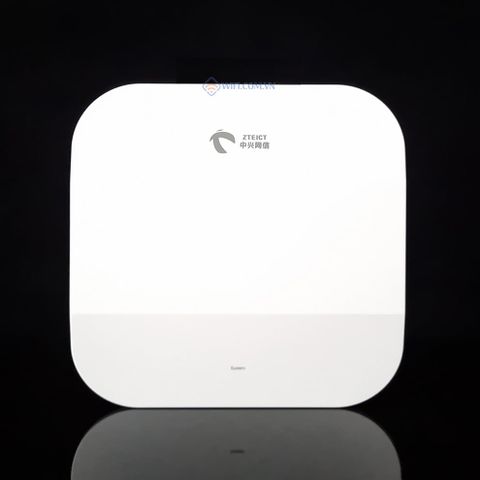

Model

ZXECS1110l

CPU

Dual core 1.4G

3G/4G Bands/Frequencies (MHz)

 - FDD-LTE: B1(2100) / B3(1800) / B5(850) / B7(2600) / B8(900)
- TDD-LTE: B38(2600) / B39(1900) / B40(2300) / B41(2500)
- TD-SCDMA: B34(2000) / B39(1900)
- UMTS: B1(2100) / B8(900)

3G/4G Theoretical Speed

Support Release 9 Category 4
- TDD-LTE up to 150Mbps DL, 50Mbps UL
- FDD-LTE up to 150Mbps DL, 50Mbps UL
- TD-SCDMA up to 4.2Mbps DL, 2.2Mbps UL
- DC-HSPA+ up to 42Mbps DL, 5.76Mbps UL

SIM Card Size

Standard

SIM Slot

1

Embedded LTE Modem

1

Memory

1GB

eMMC

20GB

Ethernet Port

(1) 10M/100M/1000M RJ45 Interface

Management Port

Micro USB console port

GPS

Supported

Bluetooth

Supported

USB3.0

1

Power Connecter

M12 Aviation plug

Power Input

- 9–36V DC broadband power, 12V/24V supported, power shut down control interface, ACC signal interface
- ACC/regular dual power supported
- Power plug anti-shake
- Anti-access protection
- 10s startup delay. Under voltage protection (12v System 8.5V+-0.5V under voltage protection, 24v System 17V+0.5V under voltage protection )

Power consumption

19W (MAX.)

Indicators

- Top panel: (1) sys indicator
- Front panel:
    (1) Power indicator
    (1) 2.4G WiFi indicator
    (1) 5G WiFi indicator
    (1) 3G/4G module status indicator
    (1) GPS indictor
    (2) LAN indicator (RJ45 integrated)


Button

(1) Reset Button

Sim Lock

Protected panel locked by allen screws

WiFi RF

Dual-radio, dual-band

MIMO

2x2, up to 300Mbps/2.4GHz, up to 867Mbps/5GHz

Transmit power

23dBm（ 2.4G) / 19dBm（ 5G)
Support adjustable power levels: 100%, 75%, 50%

Channels

802.11a/n： 5 channels
802.11b/g/n： 13 channels


Overall access performance

Support 802.11AC:
  HT40:180Mbps
  HT80:580Mbps
802.11/n:110Mbps

Concurrent Users

Support 60 and more STA

SSID

Support 8 SSID per radio

Routing Protocol

RIPv1/v2, OSPF

NAT

Support

Humidity

5 ~ 95%(no condensing)

Storage Temperature:

-40 ~ 85℃

Operating Temperature:

-20 ~ 70℃

Cooling

Heat radiation without fan

Enclosure

- Metal case
- High temperature resistant plastic top cover

Dimension

200*198*42mm

Weight

1.6KG

Vibration Standard

GB/T4798.2-2007 5M3

Safety Standards

IEC 60950-1, EN 60950-1

Emission Standard

GB/T17619-1998, EN 300 386, EN 55022/55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

Protection Rating

IP54
