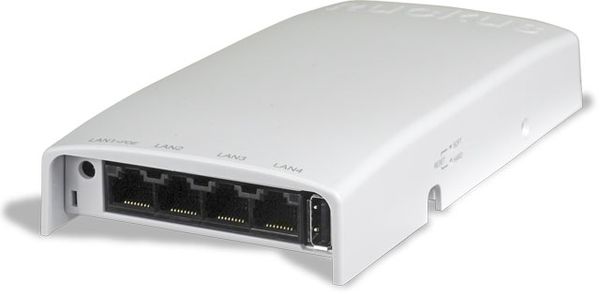

Bộ Phát Wifi Ruckus Zoneflex H500

Model

: Zoneflex H500 , Mã sản phẩm : 901-H500-WW02

Kiểu thiết kế

: Kiểu thiết kế hình hộp chữ nhật ốp trần
: Màu sắc – trắng

Khả năng tương thích

: Thiết bị phát sóng Wifi trong nhà

Lượng user truy cập đồng thời

: 100 Clients

Data transfer rate

: 867 Mbps (5 GHz) and 300 Mbps (2.4 GHz) of user data rate
: 802.11n/ac: 6.5Mbps – 173.4Mbps (20MHz)
: 13.5Mbps – 400Mbps (40MHz)
: 29.3Mbps – 867Mbps (80MHz)
: 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
: 802.11b: 11, 5.5, 2 and 1 Mbps
: 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps

Băng tần

: Sử dụng 2 băng tần dual-band (5GHz/2.4GHz)

Radio

: Radio chains:streams (2×2:2)

Ethernet port

: 4 10/100 Mbps Base-T 802.3, 802.3u, RJ-45 Ethernet access ports.
: 1 10/100/1000Mpbs Base-T 802.3, 802.3u, 802.3ab, 802.3af (802.3at class 4) PoE input, RJ-45
: USB 2.0 (max power 0.5 w)

Ăngten

: Adaptive antenna that provides up to 64 unique antenna patterns per radio

: Full omnidirectional polarization diversity

Power

: POE 802.3af/802.3at
: 48VDC input

Physical size and weight

: 90 mm x 171 mm, 29 mm

: 210 g (.46 Lbs.)
: 282 g (.62 Lbs.) with bracket

Mounting Options

: Electrical wallbox; Standard US and EU single gang wall jack

: Optional bracket for offset & wall mount

Lock Options

: Hidden latching mechanism

: Kensington Lock Hole

: T-bar Torx

: Bracket (902-0108-0000) Torx screw & padlock (sold separately)

Environmental Conditions

: Operating Temperature: 32°F (0°C) – 104°F (40°C)
: Operating Humidity: 15% – 95% non-condensing
