Thông tin sản phẩm
Bảo hành: 36 Tháng
Hãng sản xuất: Ruijie
Mô tả sản phẩm

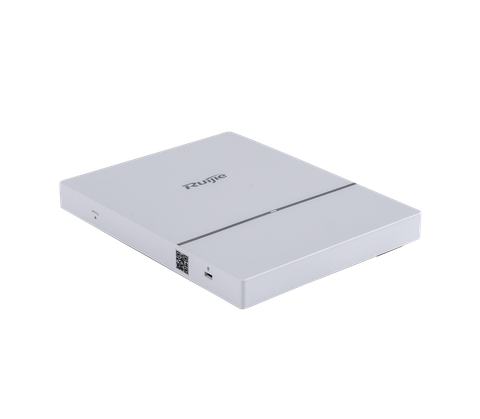

Wireless Access Point, Ceiling/wall-mountable
WiFi6, Dual-band radio (2.4G+5G or 5G+5G). 2.4G: 574Mbps, 5G: 1.2Gbps
802.11b/g/n, 802.11a/bn/ac/ax. Intergrated antena (3dBi+3dBi)
MU-MIMO, BSS, 1x LAN 10/100/1000M, PoE In
Console port, LED indicator, Transmit power ≤100mw (20dBm), <12.95W. Max 1024 clients. WLAN/VLAN config.
GB4943, EN/IEC 60950-1, GB9254, EN301 489, SRRC, EN300 328, EN301 893, IP41.
Ruijie Cloud Management
THÔNG SỐ
| Model | RG-AP820-L(V2) | |
| Hardware specifications | ||
| Radio | Dual-radio dual-band： | |
| Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO | ||
| Radio 2: 5G 11ax: 2x2 MIMO | ||
| Protocol | Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac | |
| Operating Bands | 802.11b/g/n/ax ：2.4G ~ 2.483GHz | |
| 802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries) | ||
| Spatial Streams | Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz | |
| Max Throughput | Maximum throughput (5G+5G mode) per AP: 2.4Gbps | |
| Radio1：5G low band 1.2Gbps | ||
| Radio2：5G high band 1.2Gbps | ||
| 2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps | ||
| Radio1：2.4G 0.574Gbps | ||
| Radio2：5G 1.2Gbps | ||
| Modulation | OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps | |
| DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps | ||
| MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM | ||
| OFDMA (up to 1024-QAM) | ||
| Receiver Sensitivity | 11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps） | |
| 11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） | ||
| 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15） | ||
| 11ac HT20：-88dBm（MCS0）, -63dBm（MCS9） | ||
| 11ac HT40：-85dBm（MCS0）, -60dBm（MCS9） | ||
| 11ac HT80：-82dBm（MCS0）, -57dBm（MCS9） | ||
| 11ax HT80：-82dBm（MCS0）, -57dBm（MCS9）, -52dBm（MCS11） | ||
| Antenna | Integrated antenna design | |
| Antenna Gain | 2.4G: 3dBi | |
| 5G: 3dBi | ||
| Service Ports | 1 10/100/1000M Ethernet ports, PoE In | |
| Management Port | 1 console port | |
| Reset Button | Support | |
| Anti-theft Lock | Support | |
| LED Indicator | 1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access) | |
| Transmit Power | ≤100mw（20dBm） (vary depending on different countries) | |
| Adjustable Power | 1dBm | |
| Power Supply | Local power supply (DC 48V/1A) （Power adapters are sold separately） | |
| PoE (802.3af) – full spectrum operation | ||
| Power Consumption | ＜12.95W | |
| Physical Specifications | ||
| Temperature | Operating Temperature: -10°C to 50°C | |
| Storage Temperature: -40°C to 70°C | ||
| Humidity | Operating Humidity: 5% to 95% (non-condensing) | |
| Storage Humidity: 5% to 95% (non-condensing) | ||
| Installation Mode | Ceiling/wall-mountable | |
| Dimensions (W x D x H) | 153mm ×193mm x26mm（Height of the AP only, excluding the mount kit） | |
| Weight | ≤0.5kg (include mount kit) | |
| IP Rating | IP41 | |
| Certifications and Compliance | ||
| Wi-Fi Alliance | · Wi-Fi CERTIFIED™ a, b, g, n, ac | |
| · Wi-Fi CERTIFIED 6™ | ||
| · WPA3™-Enterprise, Personal | ||
| · Wi-Fi Enhanced Open™ | ||
| · Wi-Fi Agile Multiband™ | ||
| · WMM® | ||
| Safety Standard | GB4943, EN/IEC 62368-1 | |
| EMC Standard | GB9254, EN301 489 | |
| Radio Standard | SRRC, EN300 328, EN301 893 | |
| Software Specifications | ||
| WLAN | Maximum clients per AP | 1024 |
| BSSID capacity | Up to 32 | |
| SSID hiding | Support | |
| 5G Priority (Band Steering) | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| Intelligent device recognition technology | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based bandwidth control | |
| Data encryption | WPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits） | |
| PSK and web authentication | Support | |
| PPSK authentication (For Employee) | Support (require wireless controller) | |
| 802.1x authentication | Support | |
| PEAP authentication | Support | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| IP | IPv4 and IPv6 address | Support |
| Multicast routing | Multicast to unicast conversion | |
| DHCP service | DHCP Snooping, Option 82, Server, Client | |
| Management and Maintenance | Supported wireless LAN controllers | Ruijie WS Series Wireless Controller |
| Ruijie MACC-Base Software Controller | ||
| Ruijie Cloud (Public Cloud) | ||
| Management protocol | Telnet, SSH, TFTP, Web | |
| Wireless Intelligent AI Optimization Service (WIS) | Support | |
| SNMP | SNMPV1,V2c,V3 | |
| LLDP | LLDP, LLDP-MED, LLDP-POE | |
| Syslog / Debug | Support | |
| Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management Khi khách hàng đến trực tiếp Trungtambaohanh.com sẽ gặp được đội ngũ kỹ sư giàu kinh nghiệm, tay nghề giỏi chẩn đoán, kiểm tra trước mặt, sửa- thay ngay lấy liền trong vòng từ 30-45p. | ||
