Thông tin sản phẩm
Bảo hành: 36 Tháng
Hãng sản xuất: Ruijie
Mô tả sản phẩm

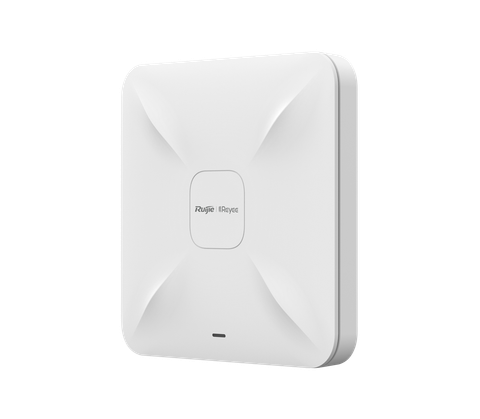

Wireless Access Point, Ceiling/wall-mountable
Dual-band radio (2.4G+5G or 5G+5G). 2.4G: 400Mbps, 5G: 867Mbps
802.11b/g/n, 802.11a/bn/ac. Intergrated antena (2dBi+2dBi)
MU-MIMO, BSS, 2 x LAN 10/100, PoE/LAN1 port supports PoE
Console port, LED indicator, Transmit power ≤100mw (20dBm), <12.95W. Max 110 clients. WLAN/VLAN config. Support Layer2/3 Roaming.
GB4943, IEC 60950-1,GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035, IEC61373,
SRRC certification, EN300 328, EN301 893
Ruijie Cloud Management
THÔNG SỐ
| Model | RG-RAP2200(F) |
| Hardware specifications | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n ：2.4G ~ 2.4835GHz |
| 802.11a/n/ac ： 5G：5.150～5.350GHz，5.725～5.850GHz | |
| Antenna | Array antennas（2.4G: 2dBi，5G: 2dBi） |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | Up to 400Mbps at 2.4G |
| Up to 867Mbps at 5G | |
| 1.267Gbp per AP | |
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps |
| DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps | |
| MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM | |
| Receive Sensitivity | 11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps) |
| 11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps) | |
| 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15 | |
| 11ac HT20: -83dBm (MCS0), -57dBm (MCS9) | |
| 11ac HT40: -79dBm (MCS0), -57dBm (MCS9) | |
| 11ac HT80: -76dBm (MCS0), -51dBm (MCS9) | |
| Maximum Transmit Power | 5.725～5.850GHz：≤20dBm (EIRP) |
| 5.150～5.350GHz：≤20dBm (EIRP) | |
| 2.4～2.4835GHz：≤20dBm (EIRP) | |
| Adjustable Power | 1dBm |
| Dimensions | 194mm×194mm×35mm (excluding mounting kits) |
| Weight | 0.45kg (excluding mounting kits) |
| Service Ports | 2 10/100Base-T Ethernet ports, |
| PoE/LAN1 port supports PoE | |
| Power Supply | Single indicator (green light) |
| Power Consumption | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) |
| 802.3af/802.3at PoE | |
| Environment | ≤ 12.95W |
| Operating temperature: 0°C～40°C | |
| Storage temperature: -40°C～70°C | |
| Operating humidity: 5％～95％（non-condensing） | |
| Installation | Storage humidity: 5％～95％（non-condensing） |
| Safety Standard | GB4943, IEC 60950-1 |
| EMC Standard | GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035 |
| Vibration Standard | IEC61373 |
| Radio Standard | SRRC certification, EN300 328, EN301 893 |
| MTBF | >400000H |
| Software Features | |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 110 |
| Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz) | |
| Up to 8 SSIDs | |
| Support SSID hiding | |
| Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID | |
| SSID-based and radio-based STA limit | |
| Support Layer 2 user isolation | |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication |
| Support static blacklist and whitelist | |
| Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption | |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment |
| Support local or remote management with Ruijie Cloud app | |
| Support local management with web | |
| Support remote management with Ruijie Cloud platform | |
| Platform management features | Automatic RF adjustment via the platform |
| Unified configuration via the platform | |
