Đánh giá sản phẩm airFiber 24HD

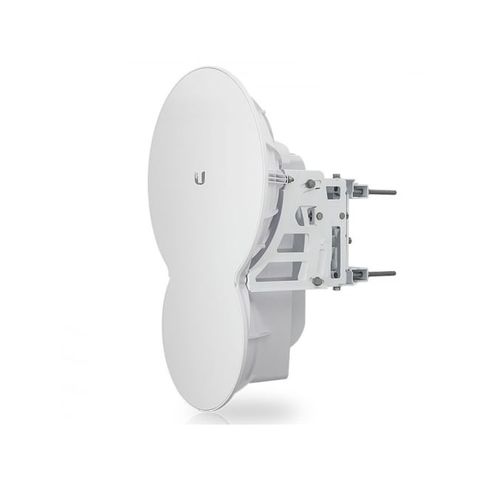

Bộ phát WiFi airFiber 24HD AF24HD
Hiệu suất xử lý lên đến 2+ triệu gói tin/giây, airFiber24HD là giải pháp lý tưởng cho ngoài trời cho kết nối backhaul điểm điểm PtP và các ứng dụng đòi hỏi hiệu suất tối đa
Thông số kỹ thuật airFiber 24HD AF24HD
| Operating Frequency | 24.05 – 24.25 GHz |
| Dimensions | 593 x 768 x 370 mm |
| Weight | 17.3 kg (Mount Included) |
| Maximum Power Consumption | 50 W |
| Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
| Power Method | Passive Power over Ethernet (42-58VDC) |
| Certifications | CE, FCC, IC |
| Mounting | Pole Mount Kit (Included) |
| Wind Loading | 170 lbf @ 125 mph |
| Wind Survivability | 125 mph |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| LEDs | (8) Status LEDs: Data Port Speed Data Port Link/Activity Configuration Port Speed Configuration Port Link/Activity GPS Synchronization Modulation Mode Master/Slave RF Status (1) Two-Digit LED Display Calibrated in dBm |
| INTERFACE | |
|---|---|
| Data Port | (1) 10/100/1000 Ethernet Port |
| Configuration Port | (1) 10/100 Ethernet Port |
| Auxiliary Port | (1) RJ-12, Alignment Tone Port |
| SYSTEM | |
| Maximum Throughput | 2 Gbps |
| Maximum Range | 20+ km |
| Packets per Second | > 1 Million |
| Encryption | 128-Bit AES |
| Forward Error Correction | No |
| Cyclic Prefix | No |
| Uplink/Downlink Ratio | 50% Fixed |
| RADIO FREQUENCY | |
| GPS | GPS Clock Synchronization |
| EIRP | ~33 dBm (FCC/IC), ~20 dBm (CE) |
| Frequency Accuracy | ±2.5 ppm without GPS Synchronization ±0.2 ppm with GPS Synchronization |
| Channel Bandwidth | 100 MHz |
| Operating Channels | 24.1 GHz, 24.2 GHz |
| Modulation | 256QAM 64QAM 16QAM QPSK MIMO QPSK SISO ¼x QPSK SISO |
| INTEGRATED SPLIT ANTENNA | |
| TX Gain | 33 dBi |
| RX Gain | 40 dBi |
| Beamwidth | < 3.5° |
| Front-to-Back Ratio | 70 dB |
| Polarity | Dual-Slant Polarization |
| Cross-Polarity Isolation | > 28 dB |
