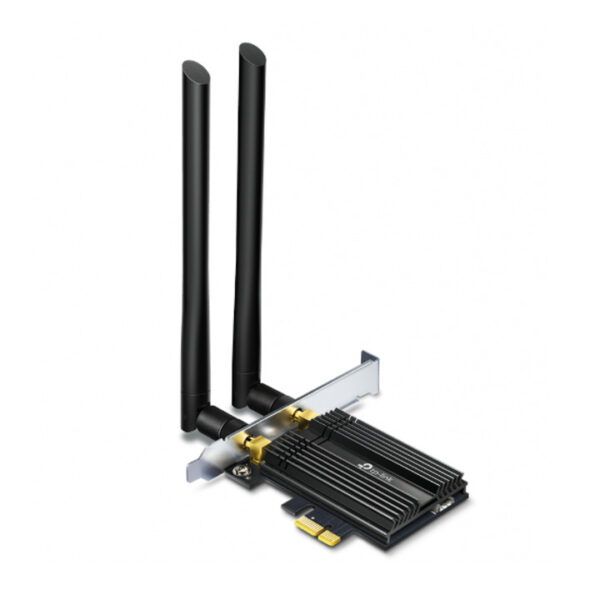

Card Mạng Wifi 6 Tp-link Tx50e Chuẩn Ax3000

Dimensions

3.7 x 4.8 x 0.8 in
(95.2 x 120.8 x 21.5 mm)

Dạng Ăng ten

Hai Ăng Ten Băng Tần Kép Độ Lợi Cao

Chipset

Chipset Wi-Fi 6 Intel

Chuẩn Wi-Fi

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0

WLAN Signal Rate

5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity

5 GHz :
11ax HT160：-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm

11ac HT160：-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm

WLAN Transmit Power

5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)

WLAN Modes

Infrastructure mode

Bảo mật Wi-Fi

Hỗ trợ 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Bluetooth Profiles

Archer TX50E support the native BT profiles implemented in Windows 10.
For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles

Chứng chỉ

CE, FCC, RoHS

Sản phẩm bao gồm

Archer TX50E
Hai ăng-ten độ lợi cao 5 dBi
Giá đỡ thấp
Cáp nối Bluetooth
Hướng dẫn cài đặt nhanh
CD nguồn

System Requirements

Chỉ Windows 10(64-bit)

Môi trường

Nhiệt độ hoạt động: 0℃~40℃ (32℉~104℉)
Nhiệt độ lưu trữ: -40℃~70℃ (-40℉~158℉)
Độ ẩm hoạt động: 10%~90% không ngưng tụ
Độ ẩm lưu trữ: 5%~90% không ngưng tụ
