Điểm nổi bật của sản phẩm

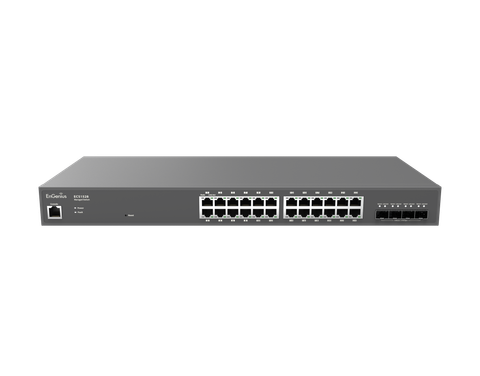

EnGenius Cloud ECS1528 là Thiết bị chuyển mạch 24 cổng Gigabit Layer 2+ với 4 Cổng 10 Gigabit SFP + Đường lên. Chọn các tùy chọn quản lý Đám mây hoặc quản lý tại chỗ dựa trên kiến trúc mạng, quyền quản trị, năng khiếu kỹ thuật hoặc thậm chí ngân sách. Các tính năng cấp doanh nghiệp tối ưu hóa hiệu quả mạng đảm bảo hiệu suất cao nhất cho các doanh nghiệp lớn.
ECS1528 | |
| Port Standards | 802.3 10Base-T Ethernet |
| 802.3u 100Base-TX Ethernet | |
| 802.3ab 1000Base-T Ethernet | |
| 802.3x Full-Duplex Flow Control | |
| Network Ports | 24 x 10/100/1000 Mbps Ports + 4 x SFP+ Ports |
| Switching Capacity | 128Gbps |
| SDRAM | 512MB |
| Flash Memory | 128MB |
| Power Source | 100 ~ 240VAC, 50/60Hz |
| Physical Interface | |
| LED Indicators | Power LED |
| Fault LED | |
| Ports | Link/Activity/Speed (per Ethernet port) |
| Link/Activity/Speed (per SFP slot) | |
| L2 Features | |
| Network Management | EnGenius Cloud |
| ezMaster/Skykey | |
| Local Web GUI | |
| MAC Address Table | 32K |
| Jumbo Frame | 9K |
| Multicast Group | Max 256 groups |
| MLD Snooping | MLD Snooping: v1 |
| QoS-number of Priority Queues Supported | Queue 8 |
| Trust Mode | Cos/802.1p |
| DSCP | |
| CoS/802.1p-DSCP | |
| Scheduling Mechanism | Strict / WRR/ Strict + WRR |
| Bandwidth Control | Port-based bandwidth control (Ingress/Egress) |
| Port Security | Max. 256 Entries |
| Access Control List (ACL) | MAC Based ACL |
| IPv4/IPv6 Based ACL | |
| ACL Binding | |
| Timebase ACL | |
| Web Graphical User Interface (GUI) | HTTP IPv4 / IPv6 |
| HTTPS IPv4 / IPv6 | |
| SSL Certificate | Certificate/Key Import |
| SNMP | SNMP v1/v2c/v3 Support |
| RMON | RMON 1,2,3,9 |
| System Time | Time Setting/Daylight saving |
| Common L2 Features | 802.1d Spanning tree |
| Loopback Detection | |
| Multicast Filtering | |
| IGMP Multicast Forwarding | |
| IGMP Snooping | |
| MLD Multicast Forwarding | |
| 802.1Q VLAN tagging | |
| 802.3x flow control | |
| 802.3ad Link Aggregation | |
| IPv4 DHCP Relay | |
| IPv4 DHCP Snooping | |
| IPv4 DHCP Snooping Source MAC Address Check-up | |
| ARP Inspection | |
| ARP Packet Validation (additional validation checks) | |
| Voice VLAN | |
| Port-based VLAN | |
| Protocol-Based VLAN | |
| CoS Mapping | |
| 802. 1X Radius Authentication Protocol | |
| IEEE 802. 3az Energy Efficient Ethernet (EEE) | |
| Command Line Interface (CLI) | |
| SSH Server | |
| Telnet Server | |
| TFTP Client | |
| Configuration Upgrade/ Backup | |
| Simple Network Time Protocol (SNTP) | |
| SYSLOG | |
| 802.1d Spanning tree | |
| L3 Features | |
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| Static ARP | Static 192 ARP entries |
| IPv4 Static Route | Max. 63 entries |
| IPv6 Static Route | Max. 21 entries |
| Environmental & Physical | |
| Temperature Range | Operating: 32°F to 122°F (0°C to 50°C) |
| Humidity (Non-Condensing) | 5% – 95% |
| Dimensions & Weight | |
| ECS1528 Device | Weight: 1.9 kg |
| Width: 200 mm | |
| Length: 440 mm | |
| Height: 44 mm | |
| Package Contents | 1x ECS Managed Gigabit Switch |
| 1x Quick Installation Guide | |
| 1x Power Cord | |
| 1x RJ45 Console Cable | |
| 1x Rack Mount Kit | |
| Warranty | 2 Years |
