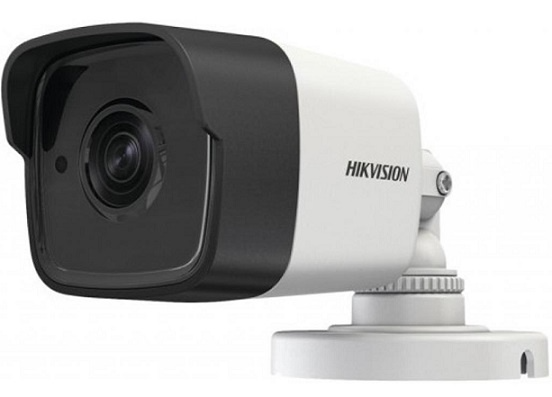

DS-2CE16DOT-ITF

Camera

WDR (Wide Dynamic Range):

Digital WDR

Angle Adjustment:

Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Image Sensor:

2 MP CMOS

Signal System:

PAL/NTSC

Effective Pixels:

1920 (H) × 1080 (V)

Min. Illumination:

0.01 Lux@ (F1.2, AGC ON), 0 Lux with IR

Shutter Time:

PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Lens:

2.8 mm, 3.6 mm, 6 mm fixed lens

Lens Mount:

M12

Day& Night:

ICR

General

Material

Metal

Operating Conditions:

-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply:

12 VDC±25%

Cómumption

Max. 3 W

IR Range:

Up to 30 m

Dimension:

57.9 mm × 60.9 mm × 138.8 mm (2.28" × 2.39" × 5.47")

Weight:

257 g (0.57 lb.)
