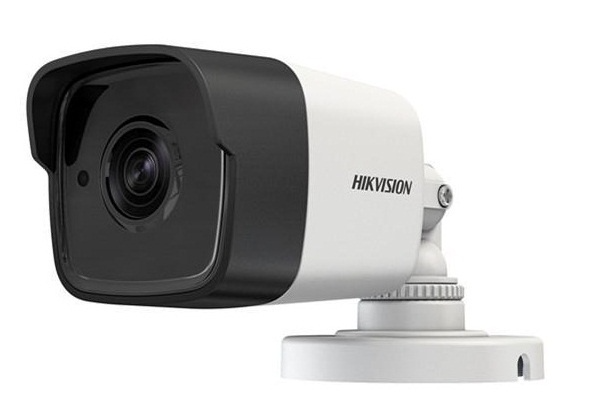

DS-2CE16HOT-ITPF

Camera

Wide Dynamic Range (WDR)

DWDR

Angle Adjustment:

Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Image Sensor:

5 MP CMOS image sensor

Signal System:

PAL/NTSC

Max. Resolution

2560 (H) × 1944 (V)

Min. Illumination:

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time:

PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Lens:

2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm

Lens Mount:

M12

Video Frame Rate:

PAL:1080p@25fps
NTSC: 1080p@30fps

Focal Length & FOV

85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)

Menu

Image Settings

Brightness, Sharpness, DNR , Mirror, Smart IR

3D DNR

Level 1 to 9

D/N Mode:

Auto/Color/BW (Black and White)

Language:

English

White Balance

ATW/MWB

General

Material

Plastic

Power Supply:

12 VDC±25%

Power Consumption:

Max. 4.3W

Weather Proof:

IP67

IR Range:

Up to 20m

Operating Conditions

-40°C - 60°C

Dimension:

58 mm × 61 mm × 163 mm (2.28" × 2.40" × 6.42")

Weight:

350 g (0.77 lb.)
