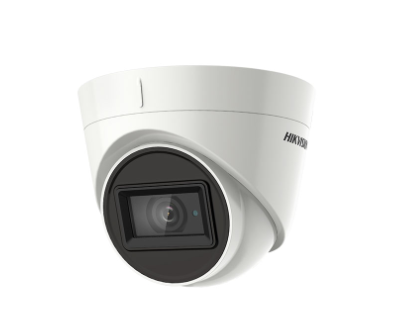

DS-2CE78D3T-IT3F

Camera

WDR (Wide Dynamic Range):

DWDR

Angle Adjustment:

Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Image Sensor:

2MP CMOS Image Sensor

Signal System:

PAL/NTSC

Effective Pixels:

1920(H)*1080(V)

Horizontal Field

106° (2.8 mm), 82° (3.6 mm), 51° (6 mm), 39°

Min. Illumination:

0.005 Lux@ (F1.2, AGC ON), 0 Lux with IR

Of View

(8 mm), 24° (12 mm)

Shutter Time:

PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Lens:

2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm

Lens Mount:

M12

Video Frame Rate:

PAL:1080p@25fps
NTSC: 1080p@30fps

Menu

Image Mode:

STD/HIGH-SAT

3D DNR

Level 1 to 9

AGC

High/Medium/Low

D/N Mode:

Auto/Color/BW (Black and White)

Function:

Brightness, Sharpness, 3D DNR, Mirror, Smart IR

Language

English

General

Power Supply:

12 VDC±25%

Power Consumption:

Max. 4.6W

Weather Proof:

IP67

IR Range:

Up to 50m

Operating Conditions

-40°C - 60°C

Dimension:

109.82 mm × 91.03 mm

Weight:

302 g (0.67 lb.)
