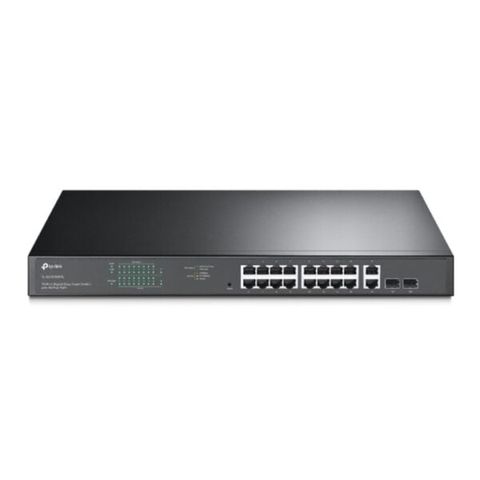

Easy Smart Gigabit Switch 16 Port Poe+ Tp-link Tl-sg1218mpe

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface

• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Combo Gigabit SFP Ports

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF

Fan Quantity

2 Fans

Physical Security Lock

Yes

Power Supply

100–240V AC, 50/60 Hz

PoE+ Ports(RJ45)

• Standard: 802.3at/802.3af compliant
• PoE+ Ports: Ports 1–16
• Power Supply: 250 W

Dimensions ( W x D x H )

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Mounting

Rack Mountable

Max Power Consumption

• 21.4 W (220/50Hz. no PD connected)
• 296.3 W (220/50Hz. with 250 W PD connected)

Max Heat Dissipation

• 72.97 BTU/h (no PD connected)
• 1010.38 BTU/h (with 250 W PD connected)

Switching Capacity

36 Gbps

Packet Forwarding Rate

26.78 Mbps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

10 KB

Quality of Service

• Support Port-based 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control

L2 Features

• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• PoE Auto Recovery

VLAN

• Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN

Management

• Web-based GUI
• Easy Smart Configuration Utility

Transmission Method

Store-And-Forward

Certification

CE, FCC, RoHS

Package Contents

• TL-SG1218MPE
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Environment

• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
