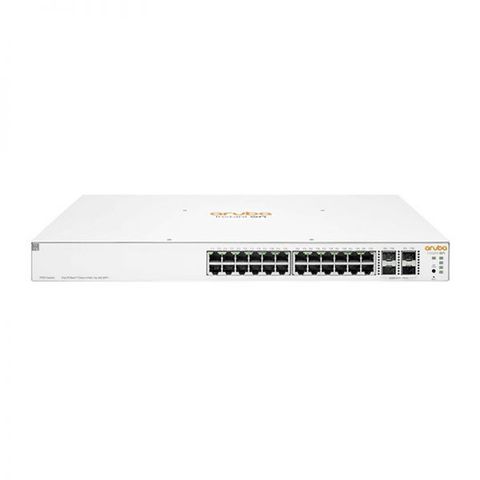

Gigabit Switch 24 Port Poe Aruba Jl684a

Model

JL684A

General

I/O Ports and Slots

24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ 1/10GbE ports

CPU

ARM Cortex-A9 @ 800 MHz

Memory And Flash

512 MB SDRAM

256 MB flash

Packet Buffer

1.5 MB

Safety

UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1

UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014

Emissions

VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A

Device Management

Aruba Instant On solution; Web browser; SNMP Manager

Performance

100Mb latency

100Mb latency: < 4.7 uSec

            Packet size: 64B

1000Mb latency

1000Mb latency: <2.4 uSec

              Packet size: 64B

10000Mb latency

10000Mb latency: <1.3 uSec

                 Packet size: 64B

Throughput

Throughput (Mpps): 95.23 Mpps

            Packet size: 64B

Switching capacity

128 Gbps

Routing table size (# of static entries)

32

MAC address table size (# of entries)

16,000

Reliability MTBF (years)

71

Physical Characteristics

Dimensions (W x D x H)

44.25 x 26.47 x 4.39 cm (1U height)

Weight

3.67kg

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Non-operating temperature

‑40°F to 158°F (‑40°C to 70°C)

Non-operating relative humidity

15% to 95% @ 140°F (60°C)

Altitude

Up to 10,000ft (3.048 Km)

Acoustic

Pressure: 46.1 dBA

Power: 60.5 dB

Electrical Characteristics

Frequency

50-60 Hz

AC voltage

100 – 127 / 200 – 240 VAC

Current

4.8/2.4 A

Maximum power rating

439.0 W

Idle power

20.9 W

PoE power

370 W Class 4 PoE

Power supply

Internal power supply

Frequency

50 / 60 Hz

AC Voltage

100-127 VAC / 200-240 VAC

Current

4.6 A / 2.3 A

Power Consumption (230 VAC)

Idle: 22.9W

Max Power (w/o PoE): 32.7W

Max Power (w/ PoE): 455W
