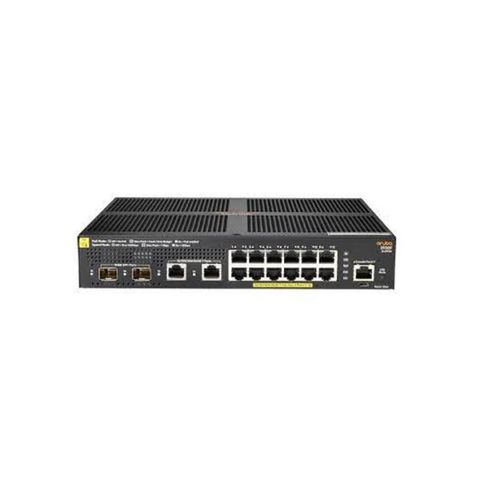

Gigabit Switch Aruba 2930f-12g- Poe+ 2g/2sfp+ Jl693a

Mã sản phẩm

Aruba 2930F 12G PoE+ 2G/2SFP+ Switch (JL693A)

I/O ports and slots

12 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASET: full only

2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP+ 1/10GbE ports; PHY-less

Additional ports and slots

1 dual-personality (RJ-45 or USB micro-B) serial console port.

Physical characteristics

Dimensions: 10 (w) x 10 (d) x 1.73 (h) in (25.4 x 25.4 x 4.39 cm) (1U height)

Weight: 4.85 lb (2.2kg)

Memory and processor

Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC

Performance

1000 Mb Latency < 3.8 µs (64-byte packets)

10 Gb Latency < 1.6 µs (64-byte packets)

Throughut up to 41.7 Mpps

Switching capacity: 68 Gbps

Routing table size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP

MAC address table size: 32768 entries

Environment

Operating temperature: 32°F to 113°F (0°C to 45°C); up to 5000 Feet, – 0C to 40C (32F to 104F) up to 10000 Feet

Operating relative humidity: 15% to 95% @ 104°F (40°C), noncondensing

Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C); up to 15000 Feet.

Nonoperating/Storage relative humidity:15% to 95% @ 149°F (65°C), noncondensing

Acoustic: Power: 0 dB, Pressure: 0 dB Fanless

Electrical characteristics

Frequency: 50/60 Hz

Maximum heat dissipation: 68.2 BTU/hr (72.0 kJ/hr)

Voltage: 90 – 264 VAC, rated

Current: 1.7 A

Maximum power rating: 170 W

PoE power: 139 W PoE+
