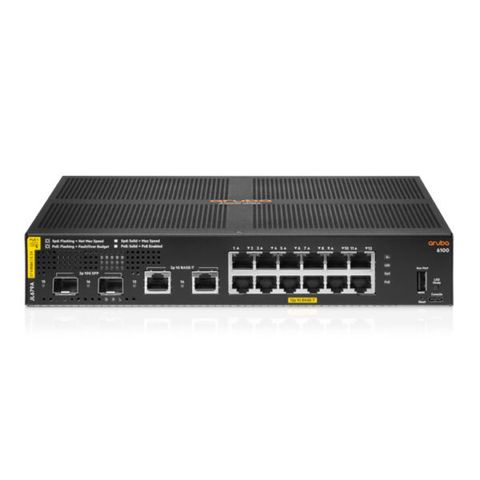

Gigabit Switch Aruba 6100 12g Class4 Poe Jl679a

Model

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)

Description

12x ports 10/100/1000BASE-T Ports

2x 1G/10G SFP ports

2x 1GbE ports

Supports PoE Standards IEEE 802.3af, 802.3at

1x USB-C Console Port

1x USB Type-A Host port

Power supplies

Fixed power supply (165W)

Up to 139W of Class 4 PoE Power

Fans

Fanless

Physical characteristics

Dimensions

(H) 4.39 cm

(W) 25.4 cm

(D) 25.5 cm

(1.73” x 10.0” x 10.04”)

Configuration Weight

2.78 kg (6.13 lbs)

Additional Specifications

CPU

Dual Core ARM Cortex A9 @ 1016 Mhz

Memory and Flash

4 GB DDR3

16 GB eMMC

Packet Buffer

12.38MB (4.5MB Ingress/7.875MB Egress)

Performance

Model Switching Capacity

68 Gbps

Model Throughput Capacity

45.1 Mpps

Average Latency (LIFO-64-bytes packets)

1 Gbps: 2.3 μSec , 10 Gbps: 2.6 μSec

Switched Virtual Interfaces (dual stack)

16

IPv4 Host Table (ARP)

1,024

IPv6 Host Table (ND)

512

IPv4 Unicast Routes

512

IPv6 Unicast Routes

512

MAC Table Capacity

8,192

IGMP Groups

512

MLD Groups

512

IPv4/IPv6/MAC ACL Entries (ingress)

256 / 128 / 256

Environment

Operating Temperature

32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

Operating Relative Humidity

15% to 95% at 104°F (40°C) non-condensing

Non-Operating

-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)

Non-Operating Storage Relative Humidity

15% to 90% @ 149°F (65°C) non-condensing

Max Operating Altitude

10000 feet (3 km) Max

Max Non-Operating Altitude

15000 feet (4.6 km) Max

Acoustic

Sound Power, LWAd = 0 Bel

Sound Pressure, LpAm (Bystander) = 0 dB

Primary Airflow

–

Electrical Characteristics

Frequency

50 / 60 Hz

AC Voltage

100-127 VAC / 200-240 VAC

Current

1.8 A / 0.9 A

Power Consumption (230 VAC)

Idle: 16W

Max Power (w/o PoE): 21.9W

Max Power (w/ PoE): 170W
