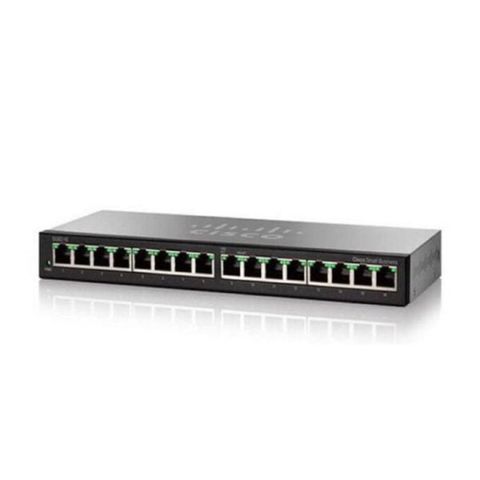

Gigabit Switch Cisco 16 Port Sg95-16

Cisco SG95-16

Specifications

Description

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet

Cabling type

Category 5e or better

LED indicators

System/PWR, link/activity, 100M*, cable diagnostics, loop detection, gigabit,* mini-GBIC* *if present

Physical Interfaces

Ports

10/100/1000 Ethernet, power port for AC adapter or power cord

Power supply

110-240VAC, 50-60 Hz, internal, universal

Lock slot

Slot for Kensington lock

Physical Specifications

Physical dimensions (W x D x H)

 279.4 x 26 x 110 mm

Weight

3.15 lb. (2.13 kg)

Ports

 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports

All units: automatic medium dependent interface (MDI) and MDI crossover (MDI-X); auto-negotiated port for connecting 10-, 100-, 1000-Mbps devices

Performance

Switching capacity

32 Gbps

Forwarding capacity

23.8 mpps

Capabilities

Head-of-line (HOL) blocking

HOL blocking prevention

Jumbo frame

9216 bytes

Quality of service (QoS)

802.1p priority based, hardware queues, priority queuing and weighted round-robin (WRR)

Loop detection

Helps discover loops in the network to avoid broadcast storms

Cable diagnostics

Quickly identify and troubleshoot network cable faults and/or shorts

Mounting and Physical Security

Mounting options

Desktop or rack mount

Physical security lock

Kensington lock slot

Environmental

Compliance/certifications

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models

Operating temperature

32° to 104°F (0° to 40°C)

Storage temperature

-4° to 158°F (-20° to 70°C)

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

5% to 90%, relative, noncondensing

Package Contents

Cisco 95 Series switch

Power cord/power adapter

Mounting hardware

Minimum Requirements

– Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet

– Cat5 or better Ethernet cable

– Network interface card for each computer
