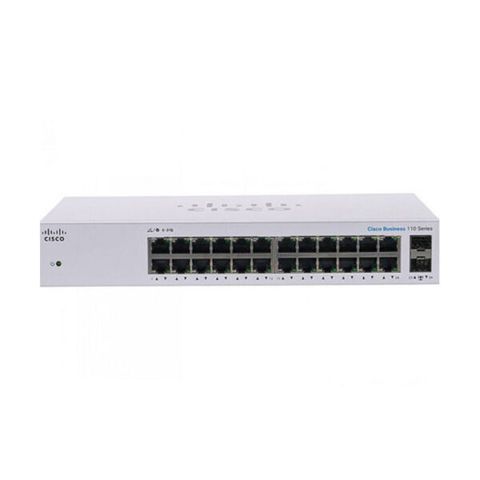

Gigabit Switch Cisco 24 Port Cbs110-24t-eu

Model

CBS110-24T-EU

Performance

Switching capacity in gigabits per second (Gbps)

48 Gbps

Capacity in millions of packets per second (mpps) (64-byte packets)

35.7 mpps

General

Head-of-line (HOL) blocking

HOL blocking prevention

MAC table

2K

Jumbo frame

9216 bytes

Quality of Service (QoS)

802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)

Loop detection

Helps discover loops in the network to avoid broadcast storms

Cable diagnostics

Quickly identify and troubleshoot network cable faults and/or shorts

Media-dependent interface

Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)

Hardware

Ports

24 Gigabit Ethernet

2 SFP (combo with 2 Gigabit Ethernet)

LEDs

Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE, if present

Cabling type

Category 5e or better

Mounting options

Desktop, wall-mount or rack mount

Physical security lock

Kensington lock slot

Flash

8MB

CPU

400MHz ARM

CPU memory

64MB

Packet buffer

2 Mbit

Environmental

Unit dimensions (W x D x H)

279 x 170 x 44 mm

Weight

1.56kg

Power

110-240VAC, 50-60 Hz, internal, universal

System power consumption

110V=16.3W

220V=16.34W

Heat dissipation (BTU/hr)

55.75

Green (power efficiency)

Supports IEEE 802.3az on all copper Gigabit Ethernet ports

Compliance/certifications

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature

32° to 104°F (0° to 40°C)

Storage temperature

–4° to 158°F (–20° to 70°C)

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

5% to 90%, relative, noncondensing

Acoustic noise and Mean Time Between Failures (MTBF)

Fan (number)

Fanless

MTBF at 25°C (hours)

524,296
