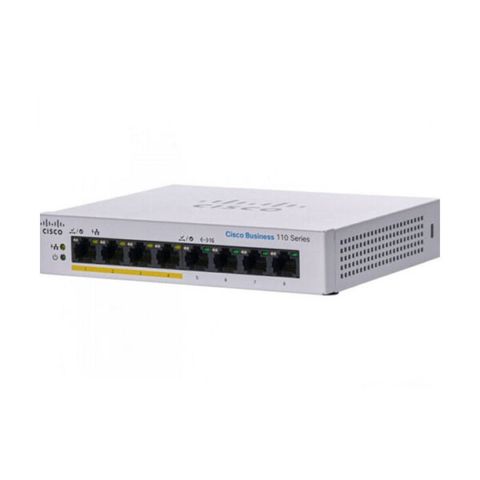

Gigabit Switch Poe Cisco 8 Port Cbs110-8pp-d-eu

Model

 CBS110-8PP-D-EU

Performance

Capacity in millions of packets per second (64-byte packets)

11.9 mpps

Switching capacity

16 Gbps

General

Head-of-line (HOL) blocking

HOL blocking prevention

MAC table

8K addresses

Jumbo frame

9216 bytes

Quality of Service (QoS)

802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)

Loop detection

Helps discover loops in the network to avoid broadcast storms

Cable diagnostics

Quickly identify and troubleshoot network cable faults and/or shorts

Media-dependent interface

Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet

Hardware

Total system ports

8 Gigabit Ethernet

RJ-45 ports

8 Gigabit Ethernet

Number of ports that support PoE

4

Power dedicated to PoE

32W

LEDs

Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE,  Max PoE.

Cabling type

Category 5e or better

Mounting options

Desktop, wall-mount or rack mount

Physical security lock

Kensington lock slot

Packet buffer

2 Mbit

Environmental

Unit dimensions (W x D x H)

160 x 129 x 30 mm

Unit weight

0.55kg

Power

DC 48V, 1.25A

Green (power efficiency)

Supports IEEE 802.3az on all copper Gigabit Ethernet ports

Compliance/certifications

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature

0° to 40°C

Storage temperature

–20° to 70°C

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

5% to 90%, relative, noncondensing

Power consumption (worst case)

System power consumption

110V=5.1W

220V=5.29W

Power consumption (with PoE)

110V=38.02W

220V=38.2W

Heat dissipation (BTU/hr)

130.34

Acoustic noise and Mean Time Between Failures (MTBF)

Fan (number)

Fanless

MTBF at 25°C (hours)

465,437
