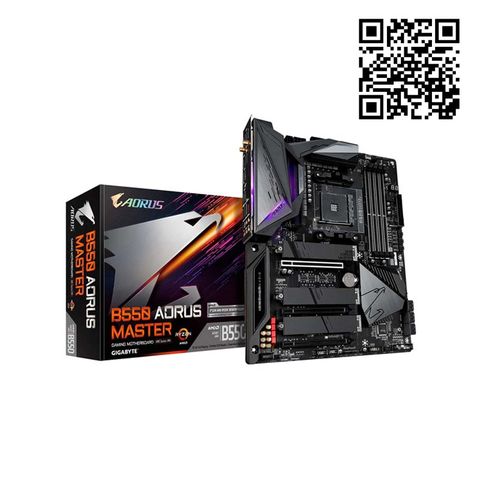

GIGABYTE B550 AORUS MASTER

Chuyên cung cấp GIGABYTE B550 AORUS MASTER nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

GIGABYTE B550 AORUS MASTER

GIGABYTE B550 AORUS MASTER

GIGABYTE B550 AORUS MASTER

THÔNG SỐ KỸ THUẬT

CPU

AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors

Chipset: AMD B550

BỘ NHỚ:

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
3. New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

ĐỒ HỌA:

Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

AUDIO

1. Realtek® ALC1220-VB codec

• The back panel line out jack supports DSD audio.

1. Support for DTS:X® Ultra
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

KHE MỞ RỘNG

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
2. New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode

2 x PCI Express x16 slots (PCIEX4_1/PCIEX4_2), integrated in the Chipset:

1. Supporting PCIe 3.0 x4 mode

GIAO DIỆN LƯU TRỮ

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
2. New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x4/x2 SSDs
2. New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x4/x2 SSDs

6 x SATA 6Gb/s connectors, integrated in the Chipset:

1. Support for RAID 0, RAID 1, and RAID 10

USB

CPU:

1. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset:

1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
4. 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

CỔNG KẾT NỐI I/O NỘI BỘ

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 3 x M.2 Socket 3 connectors
12. 6 x SATA 6Gb/s connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
19. 1 x Clear CMOS jumper
20. 2 x temperature sensor headers

CỔNG KẾT NỐI PHÍA SAU

1. 1 x HDMI port
2. 3 x USB 3.2 Gen 1 ports
3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
4. 2 x USB 3.2 Gen 2 Type-A ports (red)
5. 6 x USB 2.0/1.1 ports
6. 1 x Q-Flash Plus button
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 5 x audio jacks

BẢNG ĐIỀU KHIỂN I/O: iTE® I/O Controller Chip

H/W MONITORING:

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
8. Noise detection

BIOS

1. 2 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

TÍNH NĂNG NỔI BẬT

1. Support for APP Center
   • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

1. Support for Q-Flash Plus
2. Support for Q-Flash
3. Support for Xpress Install

PHẦN MỀM

1. Norton® Internet Security (OEM version)
2. XSplit Gamecaster + Broadcaster (12 months license)
3. Realtek® 8125 Gaming LAN Bandwidth Control Utility

HỆ ĐIỀU HÀNH: Support for Windows 10 64-bit

KÍCH THƯỚC: ATX Form Factor; 30.5cm x 24.4cm
