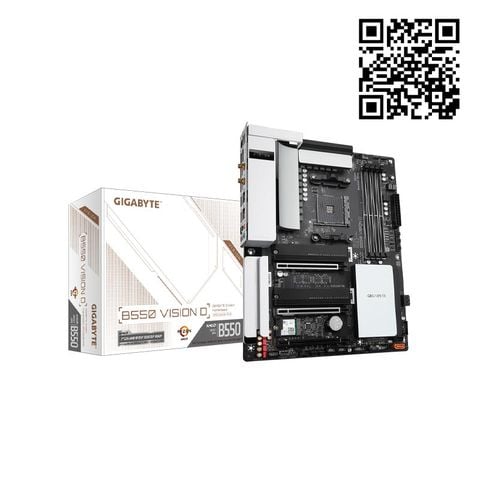

GIGABYTE B550 VISION D

Chuyên cung cấp GIGABYTE B550 VISION D nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

GIGABYTE B550 VISION D

GIGABYTE B550 VISION D

GIGABYTE B550 VISION D

THÔNG SỐ KỸ THUẬT

CPU

AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors

Chipset: AMD B550

BỘ NHỚ:

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
3. New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

ĐỒ HỌA:

Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

AUDIO

1. Realtek® ALC1220-VB codec

• The back panel line out jack supports DSD audio.

1. Support for DTS:X® Ultra
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

LAN: 2 x Intel® GbE LAN chips (1000 Mbit/100 Mbit)

WIRELESS COMMUNICATION MODULE

Intel® Wi-Fi 6 AX200

1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

KHE MỞ RỘNG

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:

1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x8 mode
2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x8 mode

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

1. Supporting PCIe 3.0 x4 mode

GIAO DIỆN LƯU TRỮ

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

1. Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

1. Support for RAID 0, RAID 1, and RAID 10

MULTI-GRAPHICS TECHNOLOGY

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

USB

Integrated in the CPU:

1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+Intel® Titan Ridge Controller:

1. 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 2 x USB 3.2 Gen 1 ports available through the internal USB header
3. 1 x USB 2.0/1.1 port on the back panel

Chipset+2 USB 2.0 Hubs:

1. 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

CỔNG KẾT NỐI I/O NỘI BỘ

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 2 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 1 x CPU cooler LED strip/RGB LED strip header
10. 2 x M.2 Socket 3 connectors
11. 4 x SATA 6Gb/s connectors
12. 1 x SATA DOM power connector
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
18. 1 x serial port header
19. 1 x Clear CMOS jumper
20. 2 x temperature sensor headers
21. 1 x Q-Flash Plus button

CỔNG KẾT NỐI PHÍA SAU

1. 1 x PS/2 keyboard/mouse port
2. 1 x DisplayPort In port
3. 1 x HDMI port
4. 2 x SMA antenna connectors (2T2R)
5. 2 x USB 3.2 Gen 2 Type-A ports (red)
6. 2 x USB Type-C™ ports, with USB 3.2 Gen 2 support
7. 4 x USB 3.2 Gen 1 ports
8. 2 x USB 2.0/1.1 ports
9. 2 x RJ-45 ports
10. 1 x optical S/PDIF Out connector
11. 5 x audio jacks

BẢNG ĐIỀU KHIỂN I/O: iTE® I/O Controller Chip

H/W MONITORING:

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

TÍNH NĂNG NỔI BẬT

1. Support for APP Center
   • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

1. Support for Q-Flash Plus
2. Support for Q-Flash
3. Support for Xpress Install

PHẦN MỀM

1. Norton® Internet Security (OEM version)
2. cFosSpeed

HỆ ĐIỀU HÀNH: Support for Windows 10 64-bit

KÍCH THƯỚC: ATX Form Factor; 30.5cm x 24.4cm
