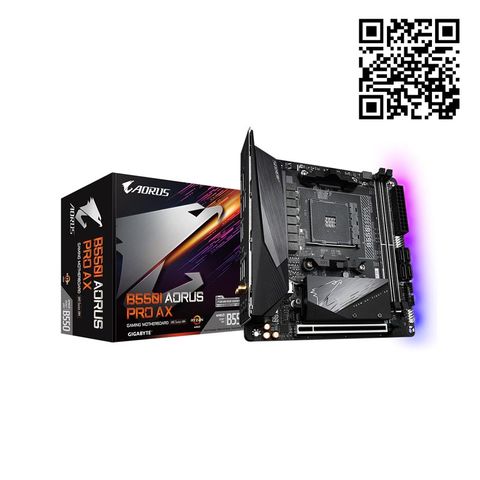

GIGABYTE B550I AORUS PRO AX

Chuyên cung cấp GIGABYTE B550I AORUS PRO AX nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

GIGABYTE B550I AORUS PRO AX

THÔNG SỐ KỸ THUẬT

CPU

AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors.

Chipset: AMD B550

BỘ NHỚ:

1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
2. 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
3. New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules.

ĐỒ HỌA:

Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:

1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

1. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time

Maximum shared memory of 16 GB

AUDIO

1. Realtek® ALC1220-VB codec

* The back panel line out jack supports DSD audio.

1. High Definition Audio
2. 2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

WIRELESS COMMUNICATION MODULE

Intel® Wi-Fi 6 AX200

• WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 5
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

KHE MỞ RỘNG

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

• 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
• New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode.

GIAO DIỆN LƯU TRỮ

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:

- 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs

- New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

• 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:

- Supporting SATA and PCIe 3.0 x4/x2 SSDs

• 4 x SATA 6Gb/s connectors, integrated in the Chipset:

- Support for RAID 0, RAID 1, and RAID 10

USB

CPU:

• 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

• 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 2 x USB 2.0/1.1 ports available through the internal USB header

CỔNG KẾT NỐI I/O NỘI BỘ

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 2 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper

CỔNG KẾT NỐI PHÍA SAU

1. 1 x DisplayPort
2. 2 x HDMI ports
3. 1 x USB 3.2 Gen 2 Type-A port (red)
4. 4 x USB 3.2 Gen 1 ports
5. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
6. 1 x Q-Flash Plus button
7. 1 x RJ-45 port
8. 2 x SMA antenna connectors (2T2R)
9. 3 x audio jacks

BẢNG ĐIỀU KHIỂN I/O: iTE® I/O Controller Chip

H/W MONITORING:

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

TÍNH NĂNG NỔI BẬT

• Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

PHẦN MỀM

• Norton® Internet Security (OEM version)
• XSplit Gamecaster + Broadcaster (12 months license)
• Realtek® 8125 Gaming LAN Bandwidth Control Utility

HỆ ĐIỀU HÀNH: Support for Windows 10 64-bit

KÍCH THƯỚC: Mini-ITX Form Factor; 17.0cm x 17.0cm
