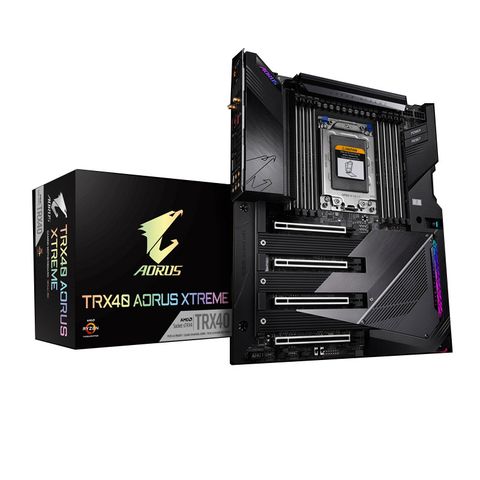

GIGABYTE TRX40 AORUS XTREME ( rev 1.0 )

Chuyên cung cấp GIGABYTE TRX40 AORUS XTREME ( rev 1.0 ) nhanh lấy liền tại chỗ trước mặt không để lại máy

Đổi cũ lấy mới cam kết hàng chính hãng, linh kiện mới 100%

Đội ngũ Kỹ Sư tay nghề cao nhiệt tình vui vẻ

GIGABYTE TRX40 AORUS XTREME ( rev 1.0 )

THÔNG SỐ KỸ THUẬT

• Support 3rd Generation AMD Ryzen™ Threadripper™ processors

• AMD TRX40

• 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
• Quad Channel memory architecture
• Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• Realtek® ALC4050H codec+Realtek® ALC1220-VB codec (rear panel audio)
• Realtek® ALC4050H codec+ESS SABRE9218 DAC (front panel audio)
• Support for DTS:X® Ultra
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

• Intel® 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports

Intel® Wi-Fi 6 AX200

• Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 5.0
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

• 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
• 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)

• Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
• Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
• 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)

• 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
• 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SOCKET)
• 8 x SATA 6Gb/s connectors (SATA3 0~7)

• 2 x SATA 6Gb/s connectors (SATA3 8, 9), supporting AHCI mode only

• 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
• 4 x USB 3.2 Gen 1 ports available through the internal USB headers

• 4 x USB 2.0/1.1 ports available through the internal USB headers (with the included front USB header extention cable)

• 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x OC_PEG power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 2 x system fan headers
• 3 x system fan/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 4 x M.2 Socket 3 connectors
• 10 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 1 headers
• 1 x USB 2.0/1.1 header
• 1 x GIGABYTE add-in card connector
• 1 x noise detection header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x power button
• 1 x reset button
• 2 x temperature sensor headers
• 2 x BIOS switches
• Voltage Measurement Points

• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 2 x SMA antenna connectors (2T2R)
• 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
• 7 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x RJ-45 ports
• 1 x optical S/PDIF Out connector
• 5 x audio jacks

• iTE® I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control
• Noise detection

• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center

  • @BIOS
  • AutoGreen
  • Cloud Station
  • EasyTune
  • Fast Boot
  • Game Boost
  • RGB Fusion
  • Smart Backup
  • Smart Keyboard
  • Smart Survey
  • System Information Viewer
  • USB Blocker
  • USB TurboCharger
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

Bundled Software

• Norton® Internet Security (OEM version)
• cFosSpeed
• XSplit Gamecaster + Broadcaster (12 months license)
• Operating System Support for Windows 10 64-bit

• XL-ATX Form Factor; 32.5cm x 27.5cm

• Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
• Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
