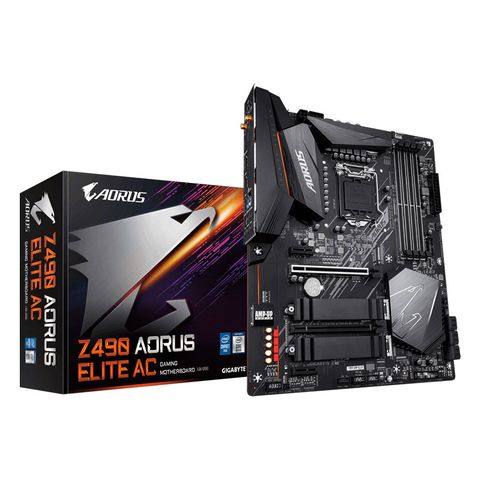

Z490 AORUS ELITE AC
Intel® Z490 AORUS Motherboard with Direct 12 Phases Digital VRM Design, Comprehensive Thermal Solution with Enlarged Surface Heatsink, Intel® Dual Band 802.11ac WIFI, 2.5GbE LAN, RGB FUSION 2.0
Thông số chi tiết GIGABYTE Z490 AORUS ELITE AC
Cổng kết nối mặt sau GIGABYTE Z490 AORUS ELITE AC
THÔNG SỐ KỸ THUẬT
CPU
- Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
- L3 cache varies with CPU
CHIPSET: Intel® Z490 Express Chipset
MEMORY
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
* To support 3200 MHz, you must use XMP memory.
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
GRAPHICS
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
EXPANSION SLOTS
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
STORAGE
- 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB/M2A_SB)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
- Intel® Optane™ Memory Ready
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
WIRELESS COMMUNICATION MODULE
Intel® Wi-Fi AC 9462:
- Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5
- Support for 1x1 11ac wireless standard and up to 433 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
AUDIO
- Realtek® ALC1200 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
MULTI-GRAPHICS TECHNOLOGY
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies.
USB PORTS
Chipset:
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BACK I/O PORTS
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 2 x SMA antenna connectors (1T1R)
- 1 x HDMI port
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
INTERNAL I/O PORTS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 2 x M.2 Socket 3 connectors
- 6 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 2 x Thunderbolt™ add-in card connectors
- 1 x Clear CMOS jumper
- 1 x Q-Flash Plus button
H/W MONITORING
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
UNIQUE FEATURES
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- RGB Fusion
- Smart Backup
- System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features
BUNDLED SOFTWARE
- Norton® Internet Security (OEM version)
- Realtek® 8125 Gaming LAN Bandwidth Control Utility
OPERATING SYSTEM
Windows® 10 64-bit
FORM FACTOR
Mini- ITX Form Factor
30.5 cm x 24.4 cm
