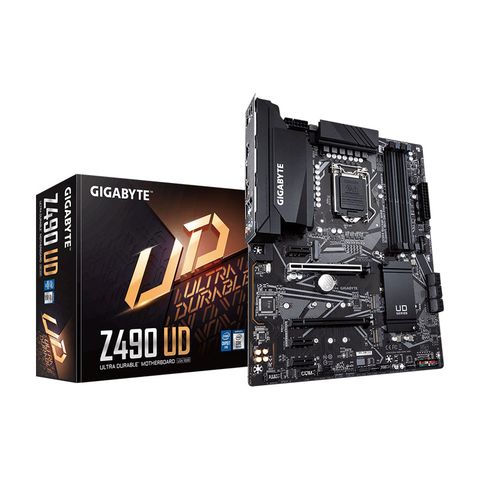

GIGABYTE Z490 UD

GIGABYTE Z490 UD

Intel® Z490 Ultra Durable Motherboard with Direct 11+1 Phases Digital VRM, Extended MOS Heatsink, Dual NVMe PCIe 3.0 x4 M.2, GbE Gaming LAN, Integrated I/O Shield, Q-Flash PLUS, RGB FUSION 2.0

Mô tả thông số GIGABYTE Z490 UD

Cổng kết nối mặt sau GIGABYTE Z490 UD

THÔNG SỐ KỸ THUẬT
CPU

• Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
• L3 cache varies with CPU

CHIPSET: Intel® Z490 Express Chipset

MEMORY

1. Intel® Core™ i9/i7 processors:

• Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

1. Intel® Core™ i5/i3/Pentium®/Celeron® processors:

• Support for DDR4 2666/2400/2133 MHz memory modules

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Dual channel memory architecture
3. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

GRAPHICS

Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

EXPANSION SLOTS

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

3 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

STORAGE

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB)
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• Intel® Optane™ Memory Ready

LAN

Intel® GbE LAN chip (1000 Mbit/100 Mbit)

WIRELESS COMMUNICATION MODULE

Intel® Wi-Fi AC 9462:

Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5

Support for 1x1 11ac wireless standard and up to 433 Mbps data rate

* Actual data rate may vary depending on environment and equipment.

AUDIO

• Realtek® ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• Support for S/PDIF Out

MULTI-GRAPHICS TECHNOLOGY

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

USB

Chipset:

• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

BACK I/O PORTS

• 1 x PS/2 keyboard/mouse port
• 1 x HDMI port
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 5 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

INTERNAL I/O PORTS

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 4 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x Q-Flash Plus button
• 6 x SATA 6Gb/s connectors
• 2 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 2 x Thunderbolt™ add-in card connectors
• 1 x serial port header
• 1 x Clear CMOS jumper

H/W MONITORING

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control

UNIQUE FEATURES

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• @BIOS
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

BUNDLED SOFTWARE

• Norton® Internet Security (OEM version)
• Realtek® 8118 Gaming LAN Bandwidth Control Utility

OPERATING SYSTEM

Windows® 10 64-bit

FORM FACTOR

ATX Form Factor

30.5 cm x 24.4 cm
