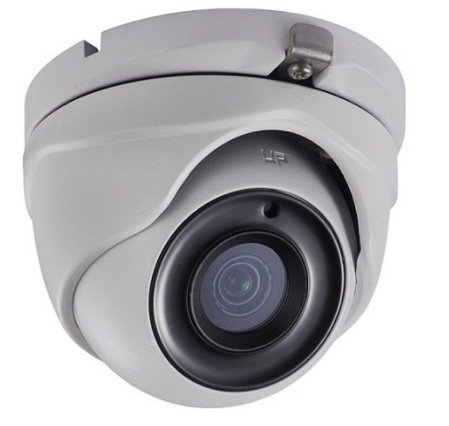

HDS-5895DTVI-IRM

Camera

Image Sensor:

3MP CMOS Image Sensor

Signal System:

PAL/NTSC

Effective Pixels:

2052(H)*1536(V)

Min. Illumination:

0.01 Lux @ (F1.2AGC ON),0 Lux with IR

Shutter Time:

1/25(1/30) s to 1/50,000 s

Lens:

2.8mm/3.6mm/6mm optional
Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm)

Lens Mount:

M12

Adjustment Range:

Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

Day& Night:

IR cut filter with auto switch

Video Frame Rate:

1920 ×1536@18fps

HD Video Output:

1 Analog HD output

Synchronization:

Internal Synchronization

S/N Ratio:

More than 62 dB

Up the Coax:

Support

Menu

Auto White Balance:

Auto/MWB

BLC:

Support

AGC:

Support

Language:

English/Chinese

Function:

Digital Noise reduction; Mirror; SMART IR

General

Operating Conditions:

-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply:

12 VDC±15%

Power Consumption:

Max. 5W

Weather Proof:

IP66

IR Range:

Up to 20m

Communication:

Up the coax
Protocol: Standard-C(Coaxitron)

Dimension:

91mm×82.6mm×68.3mm (3.58"×3.25"×2.69")

Weight:

Approx. 350g (0.77lb)
