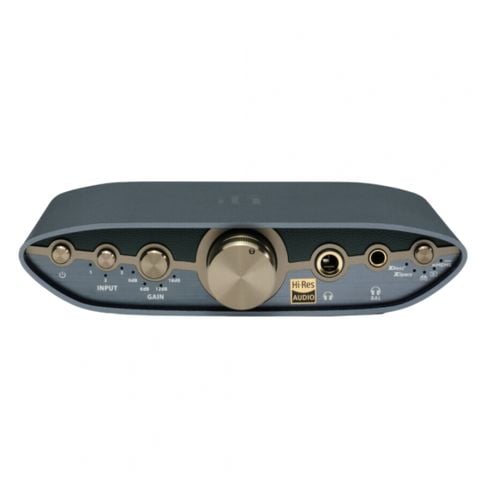

iFi Zen Can 3

Product type

Headphone amplifier

Amplification type

Class A

Inputs

1x RCA stereo

1x 3.5mm jack

1x Balanced 4.4mm jack

Outputs

1x 6.35mm headphone output

1x Balanced 4.4mm headphone output

1x Balanced 4.4mm stereo jack output

RMS headphone output power

6.35mm jack: up to 1600mW RMS @ 32 ohms (>7.2V)

4.4mm jack: up to 2000mW RMS @ 64 ohms (>11.5V)

Headphone output impedance

6.35mm jack: < 1 Ohms

4.4mm jack: < 2 Ohms

Max. headphone output power

Jack 6.35mm: 98mW @ 600 Ohms (>7.6V) / 1600W @ 32 Ohms (>7.2V)

Jack 4.4mm: 385mW @ 600 Ohms (>15.1V) / 1,200mW @ 32 Ohms (>6.2V)

XMEMS

Jack 4.4mm: >21Vpp, 22 Ohms, 11V DC bias

THD

< 0.006%

Frequency response

10Hz-200kHz (-3dB)

SNR

>119dBA (@ 0dBFS)

Gain adjustment

0dB/6dB/12dB/18dB

Output impedance

<200 Ohms

Output level

4Vrms (0dB, 200kOhm load)

SNR

≥125dB (7.3V, 4.4mm jack input, 0dB, @ 200kOhm)

DNR

≥119dB(A)

THD+N

0.006% (0dB, 200kOhm load)

Power supply

5V 2.5A DC

Power consumption

No signal: 5W

Operating: 13W

Dimensions

158 x 35 x 117mm

Weight

495g

Color

Grey

Package

1x iFi Audio ZEN Can 3 headphone amplifier

1x Pair of RCA interconnect cables

1x 3.5mm jack to 6.35mm jack adapter

1x Mains adapter
