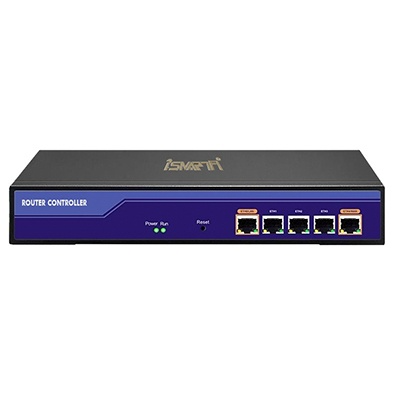

iSmartFi Router Controller ACG L80

Hardware

Protocol

IEEE 802.3, 802.3u, 802.3ab

TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS, IPsec, PPTP, L2TP, CAPWAP Protocol

CPU

MT7621

DDR

256M

Flash

16M

Heat Dissipate

Super silent ball fan

Ports

4 × 10/100/1000Mbps LAN ports (can set to WAN port)

1 × 10/100/1000Mbps WAN port

Power

AC:100-240V,50HZ

Dimension

440mm*240mm*44mm

Working Temperature

-20℃~55℃

Storage Temperature

-40℃ ~ 70℃

Working Humidity

5% ~ 97%RH (No condensation)

Firmware features

Concurrent APs and Connections Management

Max. 120 CCs

Max. 32 Aps

Centrally and remotely to manage/configure wireless AP

View user’s status

Smart Flow Control

One click smart flow control

Powerful multi - line diversion

Application Priority Automatically

Load Balance

Multiple WAN ; Multiple ISP network access

Intelligence load balancing

Ethernet line backup

Ethernet Superimposed

Policy routing: Based - on IP address, destination IP address, source MAC address, network port, domain, destination port, Extranet port, Identity binding

Protocol binding

Routing

Static Routing

Behavior Management

All-round to block P2P firmware

P2P flow control and bandwidth allow

File and URL filter

Monitor network behavior at all times

Bandwidth Limitation

Based – on IP bandwidth limitation

Safeguard / Restrict bandwidth

Time strategy

Based – on IP session restriction

Security Center

MAC address filter

Username Password / Key words filter

Web content filter

IP address filter

Port mapping

DMZ

Defense Center

TCP/UDP/ICMP flood defense

Block TCP scanning

Block ping WAN port

ARP Detection

Send GARP packets

ARP Scanning on WAN/LAN port

Online detection

IP-MAC binding

Authentication

PPPoE authentication

Portal authentication : Wechat Authentication; Username / Password authentication; One-time Password authentication ;SMS authentication

Management

Web/CLI/Telnet management

Remote management

Others

DDNS, VPN management

Content

ACG L80  *1

Power Cable *1

Installation Accessory

QIG*1
