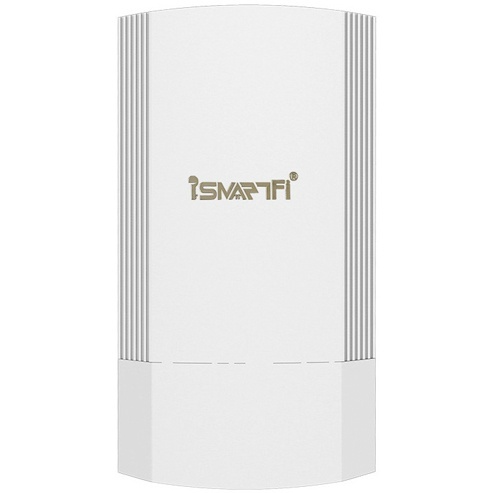

iSmartFi WiFi5 L500 Outdoor

Hardware

Chipset

Media Tek: MT7628DAN

Wireless

802.11N, 2T2R 300M MIMO Technology

Memory

64MB RAM

Flash

8MB

Interface

1 * 10/100Mbps RJ45 WAN Port

1 * 10/100Mbps RJ45 LAN Port

1 * LED display, show operation mode, channel, signal strength

1 * F(Function) switch button for LED display

1 * S(Select) button for LED display

1 * DC Injector

1 * Reset button, press 15 seconds to revert to default setting, press 1 second to finish LED display configuration

Antenna

8dBi Panel Antenna, V: 60^o L: 33^o

LED Light

PWR(Power), WAN, LAN, Wi-Fi

Size

168mm*88mm*57.6mm

Power

POE 24V/0.5A

Waterproof Level

IP65

RF Data

RF Data

802.11b/g/n:

2.4GHz to 2.484GHz

Korea, Japan, ETSI, FCC, Debug

Modulation

OFDM = BPSK,QPSK, 16-QAM, 64-QAM

DSSS = DBPSK, DQPSK, CCK

Data Rate

300Mbps

RF Power

802.11b

11M

18±2dBm

1M

21±2dBm

802.11g

54M

17±2dBm

6M

20±2dBm

802.11n HT20

MCS7

16±2dBm

MCS0

19±2dBm

802.11n HT40

MCS7

15±2dBm

MCS0

18±2dBm

Receive Sensitivity

802.11b

11M

-85dBm

1M

-94dBm

802.11g

54M

-72dBm

6M

-88dBm

802.11n HT20

MCS7

-68dBm

MCS0

-86dBm

802.11n HT40

MCS7

-66dBm

MCS0

-85dBm

EVM

11n: ≤-28 DB

11g: ≤-25 DB

11b: ≤-10 DB

PPM

±20ppm
