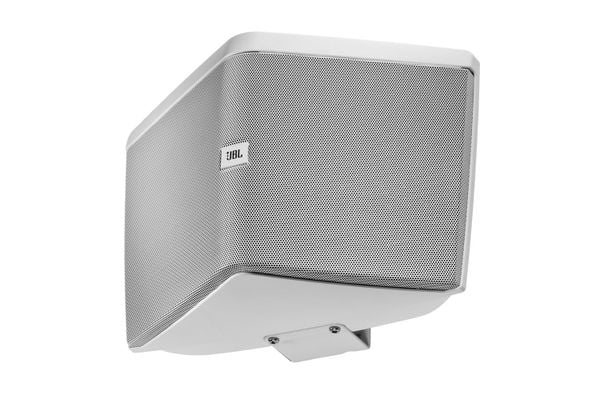

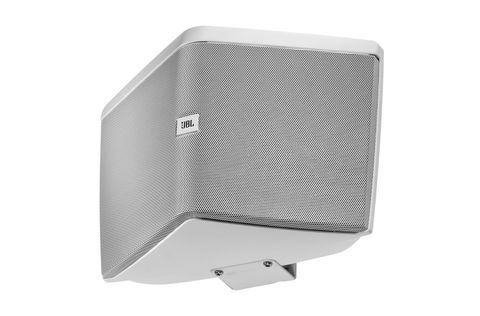

JBL CONTROL HST

Wide-Coverage Speaker with 5-1/4" LF, Dual Tweeters and HST Technology™

SPLAYED TWEETERS

The dual tweeters feature aluminum diaphragms with a CMMD treat, polyurethane surround, a neodymium magnet, and fluid-cooling for high output, low distortion
and humidity resistance.

WALL FACING WOOFER

The well-damped woofer incorporates a CMMD ceramic metal matrix diaphragm for a very high stiffness-to-weight ratio, high output, resistance to humidity
and long-term durability.

CONTROLLED SOUND

Engineered noise cancelling allows Control HST to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.

• Frequency Range (-10 dB) : 50 Hz – 20 kHz
• Frequency Response (±3 dB) : 68 Hz – 18 kHz
• Coverage Pattern : 180° H x 160° V (1 kHz – 2 kHz, nominal) 160° H x 150° V (ave, 1 kHz – 16 kHz)
• Directivity Factor (Q) : 5.4 (1 k – 16 kHz)
• Directivity Index (DI) : 7.2 dB (1 k – 16 kHz)
• System Power Rating (IEC) : 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.
• Sensitivity (2.83V @ 1m) : 88 dB (Ave. 80 Hz – 20 kHz)
• Maximum SPL : Direct 8Ω: 108 dB (peaks of 114 dB)
• 60 W Tap: 97 dB @ 60W
• Crossover Network : 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
• Nominal Impedance : 8 ohms
• Transformer Taps : 70V: 60W, 30W, 15W, 7.5W
• 100V: 60W, 30W, 15W
• Low Frequency Driver : CMMD™ ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil.
• High Frequency Drivers : Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling.
• Enclosure : Fiberglass-reinforced ABS
• Attachment : Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole.
• Grille : Aluminum grille, painted to match cabinet color.
• Input Connection : Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2).
• Environmental : IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
• Dimensions : 362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.
• Colors : Available in black (RAL9004) and white (-WH, RAL9016)
• Net Weight : 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket
• Included Accessories : U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel.
