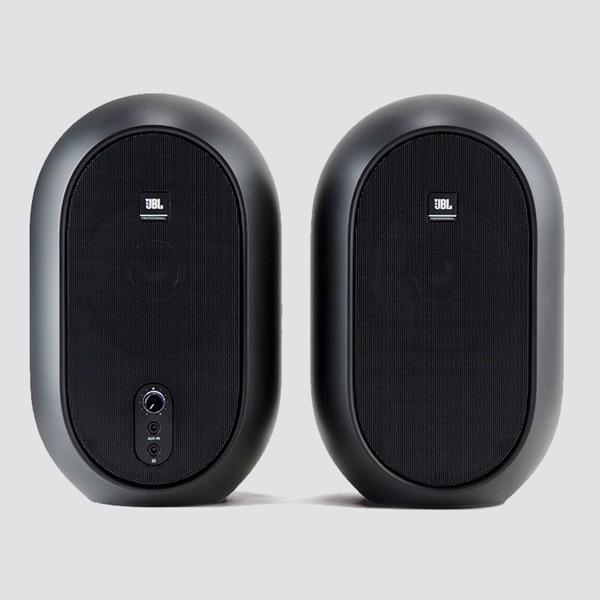

Loa Kiểm Âm Jbl 104, Monitor Studio Music

System Input Type:

1/8" Aux, RCA, 1/4" TRS balanced

System Output Type:

1/8" stereo headphone with auto speaker mute

LF Transducer:

4.5 in (118 mm)

HF Transducer:

0.75 in (19 mm), soft dome

Enclosure Type:

Ported

Crossover:

1725 Hz, 1st order

Amplifier Power:

60 W (30 W each speaker), Class D

Sensitivity:

88 dB SPL @ 1 m with -10 dBV Aux In (Volume = Max)

System Maximum SPL*:

92 dB (continuous power measured)

System Peak SPL*:

102 dB (pink noise, 12 dB crest factor)

System Maximum SPL, Momentary*:

104 dB

Maximum Peak Input Level (-10 dBV / +4 dBu):

+6 dBV / +20.3 dBu

Frequency Range (-3 dB)**:

88 Hz – 20 kHz

Frequency Range (-10 dB)**:

60 Hz – 20 kHz

System Rated Impedance:

8 Ω

Minimum Impedance:

7.8 Ω @ 260 Hz

Cabinet Tuning Frequency:

72 Hz

System Power Handling:

30 W x 2 @ 100 hours, IEC/SMS

System Distortion Criteria:

<10% THD at maximum output with full compressor/limiter engagement

Electrical Distortion Criteria:

<0.2% THD @ 1 kHz / 2.83 VRMS output; <1% THD @ 1 kHz, full rated output

Signal To Noise Ratio:

75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF

Coverage (Horizontal x Vertical):

120º x 120º

System Polarity:

EIA

Acoustic Test Specification:

ATS# 1000340443

AC Input Voltage:

100–240 VAC ±10%, 50 / 60 Hz

Current Draw:

85 W

Electrical Current Draw (W) Idle 100 / 240 VAC:

3.52 / 3.70

Electrical Current Draw (W) Max Power 100 / 240 VAC:

80 / 80

Electrical Current Draw (W) Standby Mode 100 / 240 VAC:

0.34 / 0.46

Enclosure Material:

ABS with metal grille

Enclosure Finish:

Matte black acrylic paint

Enclosure Height:

9.72 in (247 mm)

Enclosure Width:

6.02 in (153 mm)

Enclosure Depth***:

4.88 in (124 mm)

Net Weight Master Monitor / Extension Monitor:

4.54 lb (2.06 kg) / 3.81 lb (1.73 kg)

Display Carton (H x W x D):

13.14 x 8.22 x 12.4 in (334 x 209 x 315 mm)

Shipping Carton (H x W x D):

13.46 x 8.54 x 12.99 in (342 x 217 x 330 mm)

Shipping Gross Weight:

10.56 lb (4.8 kg)
