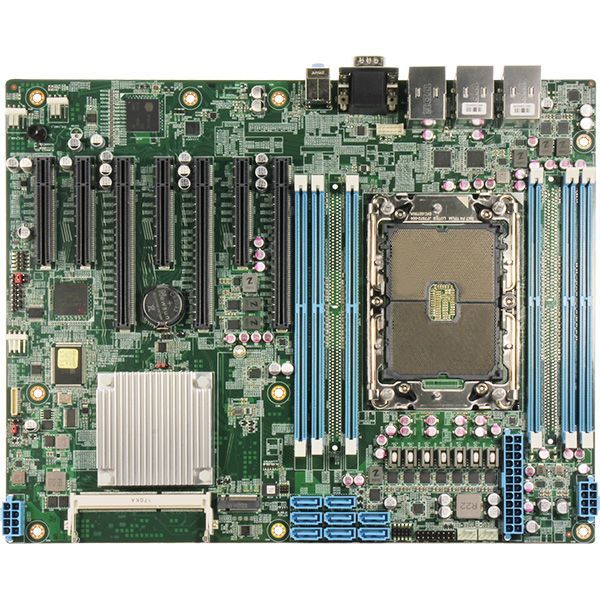

Mainboard AAEON ARES-WHI0-A10-00

FORM FACTOR

ATX Sever Board Whitley Platform

PROCESSOR

Single Intel® Xeon® Processor Ice Lake-SP processor, supports up to 270W

SYSTEM MEMORY

DDR4 2666MHz R-DIMM Slot x 6, supports up to 192GB (32GB per DIMM)

CHIPSET

Intel C621A

ETHERNET

Intel® i210 Gigabit Ethernet x 2

COM

RS-232 x 1

BIOS

AMI BIOS

SERIAL ATA

SATA II port x 8

AUDIO and VGA

1

EXPANSION INTERFACE

PCIE 1: 1 x PCIe x16 (Gen4 x16) slot
PCIE 2: 1 x PCIe x8 (Gen3 x4) slot
PCIE 3: 1 x PCIe x16 (Gen4 x16) slot
PCIE 4: 1 x PCIe x8 (Gen4 x4) slot
PCIE 5: 1 x PCIe x16 (Gen4 x16) slot
PCIE 6: 1 x PCIe x8 (Gen3 x4) slot
PCIE 7: 1 x PCIe x8 (Gen4 x8) slot

WATCHDOG TIMER

1~255 steps by software programming

RTC

Internal RTC

SYSTEM FAN

4-pin fan headers x 5(up to 5 fans)

FRONT I/O PANEL

N/A

Rear I/O Panel

USB 3.0 x 6, 1Gb RJ45 LAN x 2, AUDIO in and out x 1, VGA x 1

POWER SUPPLY

ATX

DIMENSION

12.0” x 9.6” (305mm × 244 mm)

Power Consumption

269W (Based on Intel® Xeon® Platinum 8352S)

MTBF (Hours)

292,321
