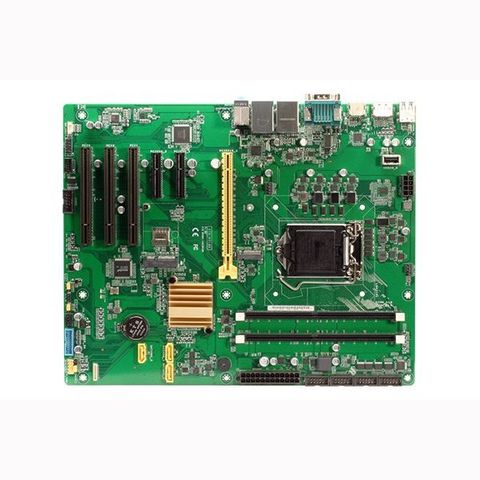

Mainboard AAEON ATX-H310A-A11-210

PROCESSOR

Intel® 8th/9th Generation (Coffee Lake-S/Coffee Lake-S Refresh) Core™ i9/ i7/ i5 /i3, Pentium 14nm LGA 1151 socket Processor, Max. 6 Core 95W

CHIPSET

Intel® H310 Express Chipset

MEMORY

DIMM x 2, DDR4 (2666/2400/2133 MHz, max. 64GB)
non-ECC, un-buffered memory
Dual channel memory architecture

I/O CHIPSET

NCT6793D+ F81216HD

ETHERNET

Intel® PHY i219V Giga LAN x 1
Intel® i210AT Giga LAN x 1
RJ45 x 2

AUDIO

Realtek® ALC897 6-Channel High Definition Audio CODEC

TPM

Nuvoton NPCT750 TPM2.0 onboard

EXPANSION SLOT

PCIe 3.0[x16] Slot x 1
PCIe 2.0[x4] Slot (open edge) x 2(#1: 1Lane #2: Default: 2Lanes, only support 1Lane when Mini PCIe slot is installed.)
PCI x 3
M.2 2280/2242 M-key (PCIex1/SATA3) x 1

BIOS

128Mbit Flash ROM x 1, AMI BIOS

H/W MONITOR

Temperature Monitor on CPU/Chassis
Voltage Monitor on Vcore/5V/3.3V/12V
Fan Monitor on CPU/Chassis

WATCHDOG TIMER

1~255 steps by software program

SMART FAN CONTROL

CPU Fan/ Chassis Fan x 2

WAKE ON LAN/ PXE

Yes (WOL / PXE)

POWER STATE

S3, S4, S5
