| SYSTEM | |

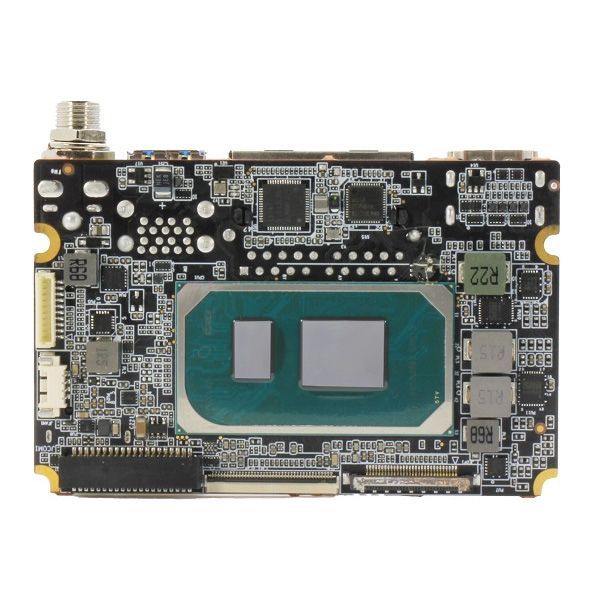

| FORM FACTOR | 86mm x 55mm, Single Board Computer |
| CPU | Onboard 11th Gen. Intel® Core™ Processor i5-1145G7E (4C/8T, 1.50GHz,15W) |
| CHIPSET | Integrated with Intel® SoC |
| MEMORY TYPE | Onboard LPDDR4x 3733, 16GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | fTPM |
| RTC Battery | Lithium Battery 3V/240mAh |
| DIMENSION (L X W) | 3.38” x 2.17” (86mm x 55mm) |
| OS SUPPORT | Windows 10 (64bit) Ubuntu 20.04.4 (Kernel 5.13) |
| POWER | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ATX |
| CONNECTOR | DC Jack Connector |
| POWER CONSUMPTION | i7-1185G7E, LPDDR4x 16GB, 4.58A@12V, 55W (TYPICAL) i7-1185G7E, LPDDR4x 16GB, 7A@12V, 84W (MAX) |
| DISPLAY | |
| CONTROLLER | Intel® UHD Graphics for 11th Gen Intel® Processors |
| LVDS/eDP | eDP 1.4 x 1 , up to 3840 x 2160 |
| DISPLAY INTERFACE | HDMI 1.4 x 1 , up to 3840 x 2160@30Hz |
| Multiple Display | 2 Simultaneous Displays |
| EXTERNAL I/O | |
| ETHERNET | Intel® i225, 2.5GbE RJ-45 x 1 Intel® i219, 1GbE RJ-45 x 1 |
| USB | USB 3.2 Gen 2 x 2 |
| SERIAL PORT | — |
| VIDEO | HDMI 1.4b x 1 |
| INTERNAL I/O | |
| USB | USB 2.0 x 4 Note : USB2.0 x 2 shared with adapter card PER-T642 / PER-T643 |
| SERIAL PORT | COM1 , COM2 (RS232/422/485, support 5V/RI) |
| VIDEO | eDP 1.4 x 1 |
| SATA | SATA 6.0 Gbps x 1 with +5V SATA Power Connector x 1 |
| AUDIO | — |
| DIO/GPIO | GPIO 8 bits |
| SMBus/I2C | Optional |
| Touch | — |
| FAN | 4 Pin Smart Fan |
| Front Panel | Power Button, Reset Button, Power LED, SATA LED, Buzzer |
| EXPANSION | |
| M.2 | M.2 2280 M-key x 1 (PCIe[x2] x 1 or PCIe[x1] x 2, selected by BIOS) |
| Others | FPC Connector x 1 (PCIe 3.0 [x4] x 1) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 609,263 |
| CERTIFICATION | CE/FCC Class A |
