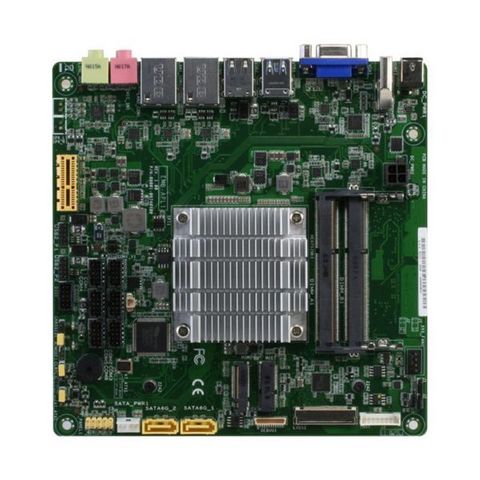

Mainboard AAEON EMB-APL1 CPU Pentium N4200

Processor

Intel® N4200, (4C @ 2.50GHz CPU [Burst Mode], 750MHz GFX [Turbo], ~6W TDP)

Chipset

Intergrated into SoC

Memory

DDR3L 1866, Single Channel SODIMM x 2, Non-ECC (Max. 8GB, up to 1600MHz)

I/O Chipset

NCT6116D

Ethernet

Realtek PCIe Gb L AN 8111H x 2

Audio

Realtek® ALC897

Expansion Slot

PCIe2.0 [x1] x 1
M.2 M key (22 x 42mm) x 1, for SATA
M.2 E Key (22 x 30mm) x 1, for PCIe

BIOS

128Mbit Flash ROM x 1, AMI BIOS

H/W Monitor

Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/12V, Fan
Monitor on CPU/Chassis

Watchdog Timer

1~255 steps by software program

Smart Fan Control

Chassis Fan x 1 (Fanless)

Wake On LAN/ PXE

Yes (WOL /PXE)

Power State

S3, S4, S5
