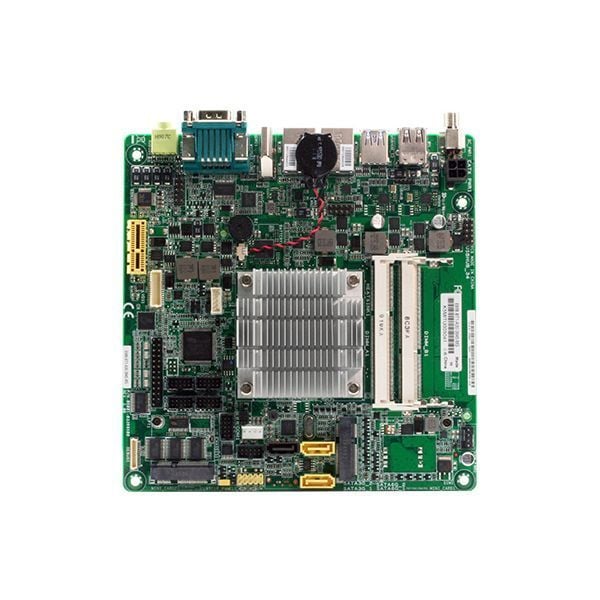

Mainboard AAEON EMB-BT1 CPU Atom E3845

SYSTEM

Processor

Intel® Atom™ E3845 Processor (4C @ 1.91 GHz CPU, 542/792 MHz GFX, 10W TDP)

Memory

DDR3L 1333 MHz SODIMM x 2 up to 8 GB

I/O Chipset

Fintech 81866D

Ethernet

Realtek® PCIe Gb LAN 8111H x 2

Audio

Realtek® ALC897

Expansion Slot

Full-size Mini-Card (mSATA default) (PCIe+USB optional) + SIM Card (default: No) x 1
Half-size Mini-Card (PCIe+USB) x 1, PCIe [x1] x 1

BIOS

64 M bit Flash ROM, AMI BIOS

H/W Monitor

Temperature Monitor on CPU/System
Voltage Monitor on Vcore/5V/3.3V/12V
Fan Monitor on CPU/Chassis

Watchdog Timer

1~255 steps by software program

Smart Fan Control

Chassis Fan (fanless)

Wake On LAN/ PXE

Yes (WOL/PXE)

Power State

S3, S4, S5
