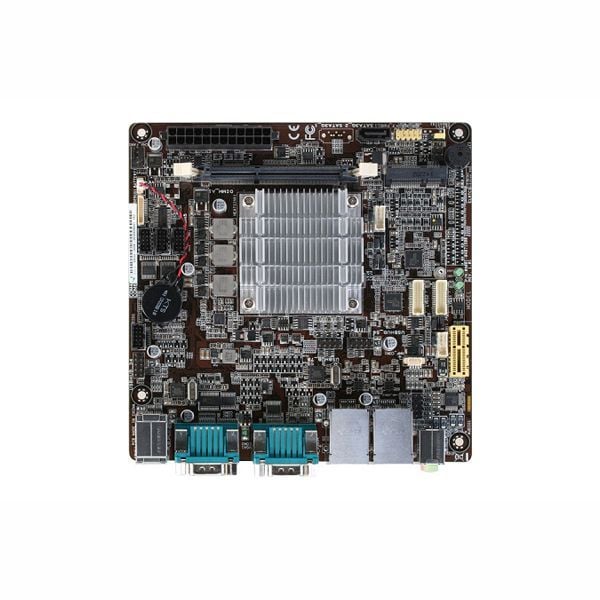

Mainboard AAEON EMB-BT2-A14-1900-D1-MSH

SYSTEM

Processor

Intel® Celeron® J1900 Processor (4C @ 2.00 GHz CPU, 688/854 MHz GFX, 10W TDP)

Memory

DDR3L 1333 MHz SODIMM x 1 up to 8 GB, Non-ECC, un-buffered memory

I/O Chipset

Fintech 81866D

Ethernet

Realtek PCIe Gb LAN 8111H x 2

Audio

Realtek® ALC897

TPM

Infineon SLB9635 TT 1.2 (default : No)

Expansion Slot

Full-size Mini-Card (mSATA default PCIe+USB optional) x 1, PCIe [x1] x 1

BIOS

64 M bit Flash ROM, AMI BIOS

H/W Monitor

Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis

Watchdog Timer

1~255 steps by software program

Smart Fan Control

Chassis Fan (fanless)

Wake On LAN/ PXE

Yes (WOL/PXE)

Power State

S3, S4, S5
