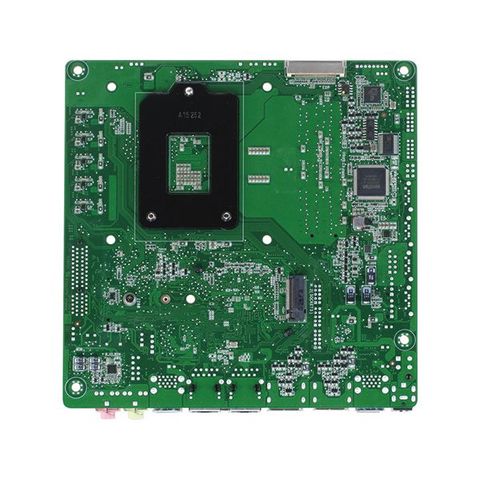

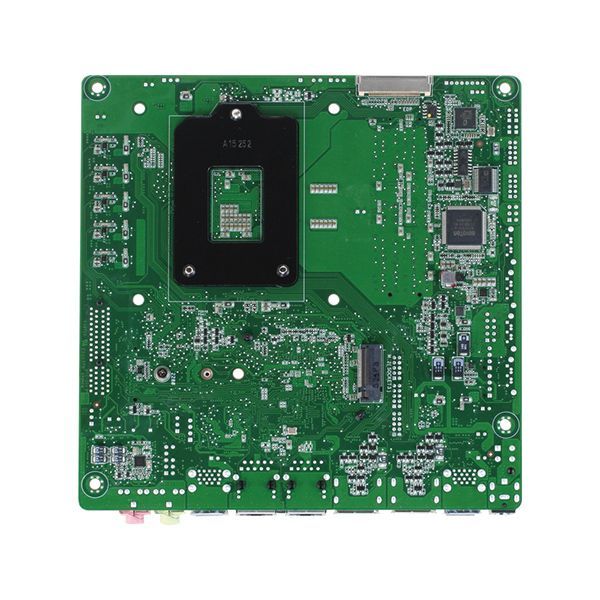

Mainboard AAEON EMB-Q170B-A11

SYSTEM

PROCESSOR

6th/7th Generation Intel® Core™ i7/i5/i3, LGA1151 Socket Processor, Max. 65W TDPs

CHIPSET

Intel® Q170

MEMORY

DDR4 2133/1867 MHz SODIMM x 2, Up to 32GB, Non-ECC, Un-buffered Memory, Dual channel memory architecture

I/O CHIPSET

NCT6791D

ETHERNET

Intel® PCIe Gb LAN 219LM for vPro x 1, Intel® PCIe Gb LAN 211AT x 1

AUDIO

Realtek® ALC897

TPM

Infineon SLB96XX TT 1.2/2.0 (default: No)

EXPANSION SLOT

PCIe 3.0 [x4] x 1,
M.2 M key (22 x 80mm) at Bottom side x 1,
M.2 E key (22 x 30mm) at Top side x 1

BIOS

128M bit Flash ROM, AMI BIOS

H/W MONITOR

Temperature Monitor on CPU/Chassis, Voltage Monitor on VCore™ 5V/12V, Fan Monitor on CPU/Chassis

WATCHDOG TIMER

1~255 steps by software program

SMART FAN CONTROL

CPU Fan/ Chassis Fan

WAKE ON LAN/ PXE

Yes (WOL/PXE)

POWER STATE

S3, S4, S5
