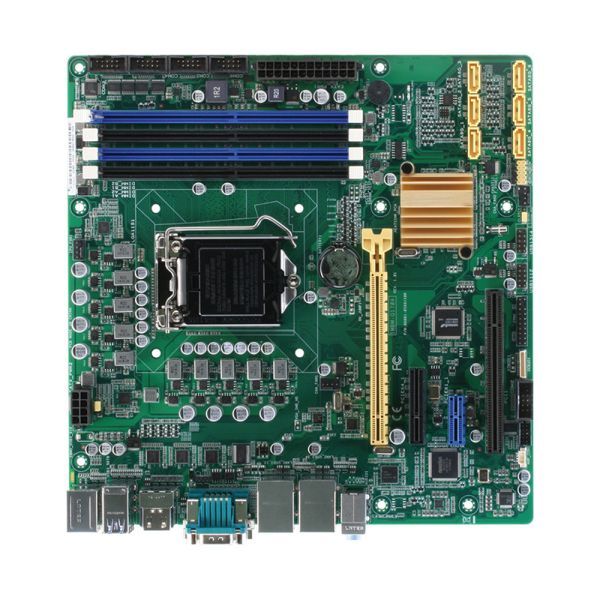

Mainboard AAEON IMBM-Q170A-A12-210

SYSTEM

Processor

7th/6th Generation Intel® Core™ i7/i5/i3/Pentium®/ Celeron® 14nm LGA1151 Socket Processor

Chipset

Intel® Q170 Express Chipset

Memory

288-pin DIMM x 4, max. 64GB, DDR4 2133/1867 MHz, non-ECC, un-buffered memory, Dual channel memory architecture

I/O Chipset

NCT6791D, F81216HD

Ethernet

LAN 1: Intel® PHY i219LM Gb LAN (supports iAMT 11.0) x 1
LAN 2: Intel® i210AT Gb LAN x ,RJ-45 x 2

Audio

Realtek® ALC897 6-Channel High Definition Audio CODEC

TPM

Nuvoton NPCT750 TPM2.0 onboard (optional; default: not onboard)

Expansion Slot

PCIe 3.0/2.0[x16] Slot x 1, PCIe 3.0/2.0[x4] Slot(open edge) x 1, PCIe 3.0/2.0[x1] Slot (open edge) x 1, PCI x 1

BIOS

128M bit Flash ROM x 1, AMI BIOS

H/W Monitor

Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis

Watchdog Timer

1~255 steps by software program

Smart Fan Control

CPU Fan/ Chassis Fan x 2

Wake On LAN/ PXE

Yes (WOL/PXE)

Power State

S3, S4, S5
