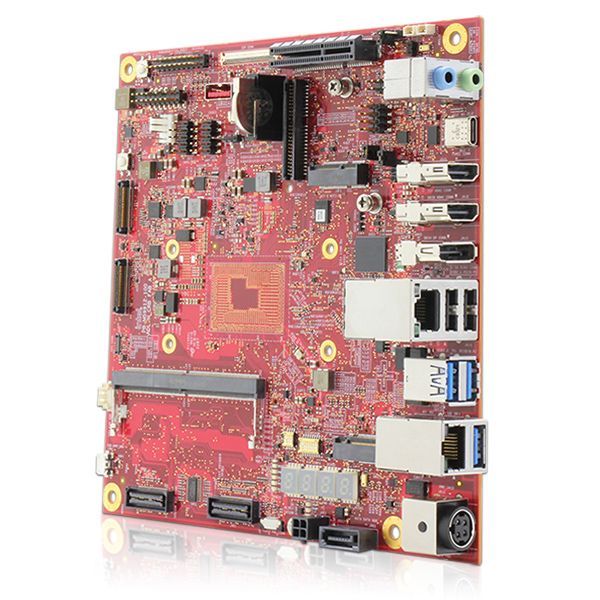

Mainboard AAEON Intel ADLSKTCRB-A01-0001

Form Factor

Mini ITX; 170mm x 170mm (6.7” x 6.7”)

PCB Stack Up

Type-3, 8 Layers

Processor Support

Alder Lake –N Processor
(AAEON does not provide nor sell CPUs for this product. Please contact your Intel field representative for further information.)

Memory

DDR5 SODIMM 8GB 4800MT/s

Display

Standard HDMI2.0 x 2
Standard DP1.4 HBR2 x 1
Type-C Connector with Display Alternate mode x 1
Optional eDP1.4 connector

Storage

eMMC5.1 128GB
M.2 Key-M 2280 SSD x 1 (SATA/PCIE x 1 and PCIe optional x 2/x 4)
SATA 7 pin cable HDR with Power HDR
256Mb (32MB) SPI NOR Flash x 1

USB

USB3.2 Type-A x 3
USB2.0 Connector x 2
Type-C USB3.2 Connector x 1
Optional 4th USB3.2 Type-A vertical connector off CPU

Connectivity

PCIe slot x 1
Intel® Ethernet Controller I225 2.5G RJ45 Connector x 1
TI DP83867E GbE RJ45 Connector x 1
M.2 Key-E 2230 for WiFi/BT (Discrete / CNVi) x 1
Optional M.2 Key-B 3042 for WWAN x 1

Audio

ALC245 HD-A Codec
3.5mm Stereo HP out x 1 + MIC Input x 1
Onboard DMIC x 2

Button

PWR Btn x 1
Reset Btn x 1

EC

EC less platform with onboard Super IO IT8659E
eSPI to LPC bridge IT8882 with 20pin eSPI/LPC HDR

Headers

HDA/I2S header
RS232/RS485 10 pin header (AT/Everex pin out) x 2
CPU x 1 and System FAN header via Super IO x 1
ISH Sensor Header
MIPI CSI Camera CRD connector x2

Security

TPM2.0 [SLB9670VQ2.0] x 1 onboard with optional TPM module header

Power Solution

12V Input with no Battery support
Discrete Power Delivery and Power sequencing
RTC Coin Cell with optional coin less operation
